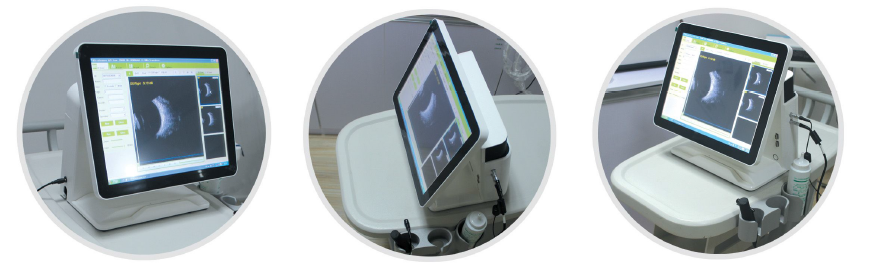

Ophthalmic Ultrasound A/B Scanner AJ-6340 with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.

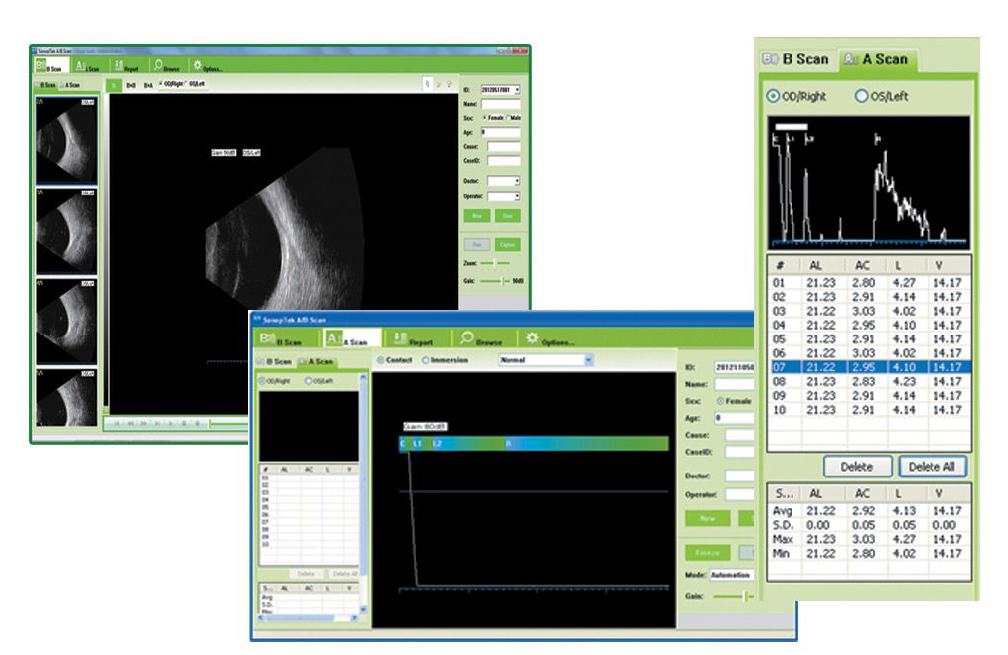

Ophthalmic Ultrasound A/B Scanner AJ-6340 works with PC workstation to compose a complete A/B scan system to support all the functions need to obtain during examinations:
- Measurements of the axial length (AL), anterior chamber depth(ACD), and lens thickness of an eye and for calculating the associated IOL power for an implanted lens
- View of the images of lens, vitreous, retina, choroid and sclera
- Statistic analysis of the obtained images
- Editable clinical report with all needed information
- Huge saved database capability
- Saved cases review
SPECIFICATIONS

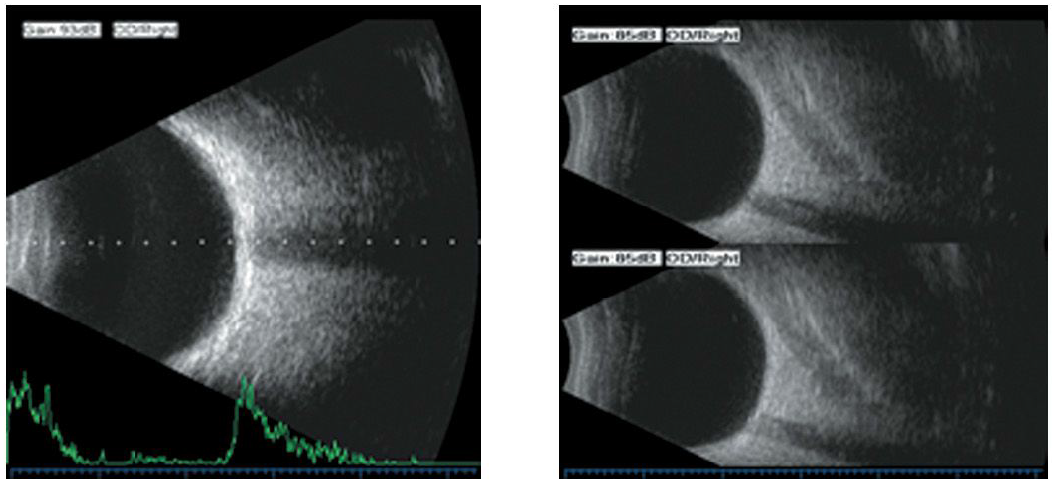

B Scan
Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning Mode: Sector Scanning
Magnify:Multi continuous magnification,Real-Time magnification
Resolution: Lateral ≤0.3mm; Vertical≤0.2mm
Geometry position precision: Lateral ≤10%; Vertical≤5%
Depth:60mm
Enhance the part of vitreous body and retina
Gain of probe:30dB-105dB
Scanning Angle:53°
Gray Scale: 256
False Color: Multi colors. OCT

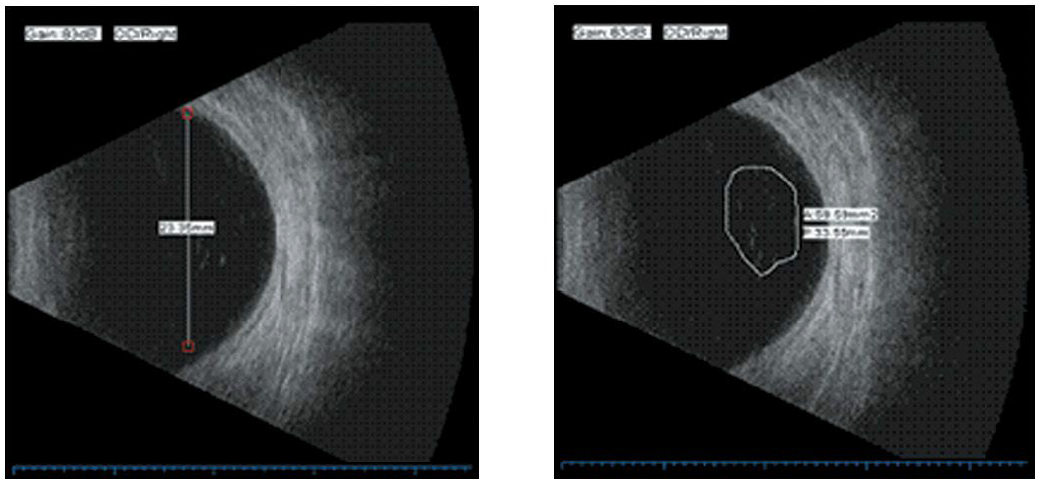

measurement type: multigroup distances, perimeters and areas
Image postprocessing: multiple curves processing, Pseudo-color processing curve
Movies: 100 images movie review, AVI JPG format image output
A Scan
Frequency:10MHz, with LED
Depth: 40mm
Precision:±0.05 mm
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average
Eye mode: Phakic / Aphakic / Dense / Various IOL
IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
Stat. Calculation: Average and standard deviation
Store: 10 Scanning results for each eye
Others
Display Mode :B, B+B, B+A, A
Hint: preset keyword
Case Search:Multi-keywords
Screen: 15 inch LCD
Built-in battery: can use 4 hours
User-defined report template poor credit secured loans
