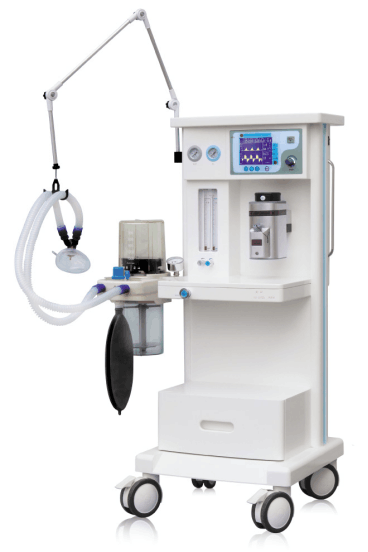

CN-2102 Anesthesia Machine with Ventilator

CN-2102 Anesthesia Machine, designed with state-of-the-art technologies, is one of high utility with excellent performance and complete functions. Both outstanding and inexpensive, it has the best cost performance that can satisfy any customer.

n The Ventilator adopts microcomputer control with high-definition 5.7” LCD display, integrating the functions of respiratory control and displaying the monitoring parameters. It is versatile in function and excellent in performance.

n The high-precision Vaporizer is designed with a stable concentration output, automatic compensation for pressure, temperature and flow rate. And it is available to choose one kind of gas from Halothane, Enflurane, Isoflurane, and Sevoflurane, ensuring a successful anesthesia operation.

n Reliable pneumatic transmission system.

n Economic and proper configuration of technologies, optional as required by the Customer.

n Modularized design and upgrading. Upgrading is available as required by the Customer.

TECHNICAL PARAMETERS

Part of Anesthesia Machine

■Main body                 High-strength engineering plastic rack, light, beautiful and corrosion resistant

■Scope of application          adult, child

■Gas source                  O2: 0.27～0.55MPa  N2O: 0.27～0.55MPa

■Flow meter                   O2: 0.1～10L/min    N2O: 0.1～10L/min

■O2, N2O linkage and N2O Stopper

 When using nitrous oxide, oxygen concentration>25%;

 When the oxygen pressure<0.2MPa, the flow of nitrous oxide would be cut off.

■Flow rate of rapid oxygen supply  25～75L/min

■Low oxygen pressure alarm     There will be sound alarm when the oxygen pressure < 0.2MPa

■Vaporizer                   it has the function of automatic compensation based on pressure, temperature, and flow rate. The regulation range of evaporator concentration is 0～5 vol%. Among Halothane, Enflurane, Isoflurane and Sevoflurane, one can be chosen for application as required by the customer. And vaporizers that are imported with original packaging are also available.

■Respiratory circuit             working mode: all-close, semi-close, semi-open

                                          releasing pressure: 0.5～7 kPa

■Respiratory bellows          bellows for adults, bellows for children

                                            tidal volume range:0～1,500 ml

Part of Ventilator

■Display mode                High-definition 5.7” LCD screen display

■Ventilation mode             IPPV,SIPPV,SIMV,PEE,MANUAL,SIGH

■Ventilation parameters         Tidal volume          50～1500ml

Rate                 2～99bmp

SIMV rate                 2～20bpm

I:E                  2:1～1:8

Inspiratory trigger pressure -1.0～2.0 kPa

PEEP                0～2.0 kPa

Pressure range         1.0～6.0 kPa

SIGH    1.5 times the inspiratory time

■Parameters for ventilation monitoring  tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure

■Monitoring of oxygen concentration  (21%～100%)

■Security Alarm System

Oxygen Concentration alarm    upper limit setting range (50%～100%)

low limit setting range  (15%～50%)

Airway pressure alarm         upper limit setting range  1.0～6.0 kPa

low limit setting range   0.4～2.0 kPa

Per-minute ventilation volume alarm  upper limit setting range  3.0～30L/min

low limit setting range   1.0～10L/min

Sustained high-pressure alarm     it will give alarm when stress have consistently been higher than 2.5 kPa

Suffocation alarm             it will give sound and light alarm if there is no tidal volume input for 15 seconds

Power alarm

■ Power                       AC 220V±10%     50Hz±1Hz

                            （UPS, Storage battery）

＊Items within brackets are optional.
