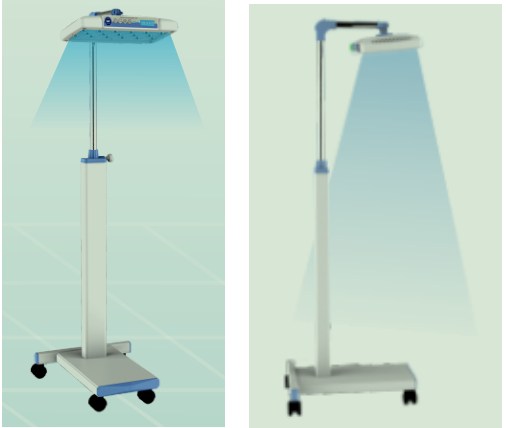

CN-2700 LED Infant Phototherapy Unit

Feature
LED bulb as phototherapy radianting elements
Irradiance intensity is adjustable in 3 grades: Low, medium, high
LCD screen display therapy time and integral time separately
Count up timer and count down timer for exact and convenient treatment
Equal light distribution, High intensity
Quiet, no noise of fan
The angle of head and height are adjustable
Four castors with brake, aluminum alloy and steel support base
Long life span LED bulb
Using together with infant incubator, infant warmer, baby cradle

Technical specification

Power supply: AC 110V ~ 240V, 50/60Hz

Power input: 45VA

Radiant wavelength: 440nm ~480nm

Height adjustable range: 850nm~1640nm

Pitching angle of phototherapy head: 0~180°

Count down timer: 0~48h

Total Irradiance for bilirubin (effective surface area 500x360nm, at 360nm)

high 2800μW/cm2

middle 2000μW/cm2

low 800μW/cm2





Transport and storage

Environment Temperature: -10~+55

Environment Relative Humidity: 90%

Atmospheric Pressure: 500~1060hPa





Package

Each unit is packed one case

Size: 935*560*165mm

Gross weight: 10kg  Net weight: 8.75kg
