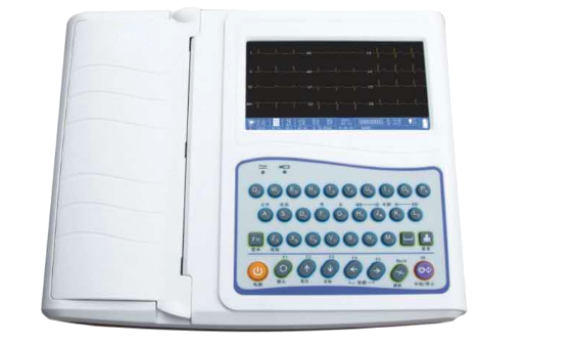

CN-ECG-12C 12 Channel Digital Electrocardiograph

SPECIFICATIONS

1.7-inch color LCD display, display waveform, menu (paper speed, gain, filter status, etc.), patient information (ID number, name, gender, age) and working status.

2. Real-time recording of 1 channel, 1+ rhythm, 3 waveforms, 6 waveforms, 12 waveforms with manual and automatic modes.

3. The screen brightness can be adjusted arbitrarily from 1 to 8 levels according to requirements.

4. High-quality silicone full keyboard Chinese/English quick input of patient information, hospital name and other letters, and allows to re-modify patient information.

5. The 3/6/12 lead synchronization display can be set arbitrarily, and the bottom grid and waveform size can be directly zoomed in or out on the screen, which is convenient for medical staff to observe the waveform directly.

6. The baseline width is adjustable from 1 to 4 levels, and a neat and beautiful ECG waveform can be produced every time according to personal preference.

7. In the automatic mode, the waveform sensitivity can be automatically adjusted, and the recording time of each group of leads can be set arbitrarily from 3 to 12 seconds.

8. The ECG data can be converted into pictures and uploaded to a U disk or SD card (supports expandable 64G SD card, can store 200,000 ECG information) for storage, and can be viewed by a computer and directly connected to a printer for printing.

9. Hot spot array printing system, printing paper specification: suitable for 215mm.
