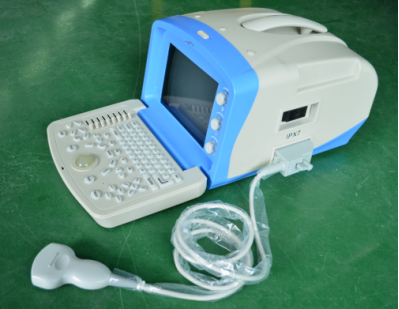

CN-600VET Veterinary Digital Ultrasound Scanner

General Description

Scope of application: Canine, Equine, Bovine, Ovine and Swine

Display Format: B,B+B,4B,B+M,M

Image grey scale: 256 Stages

TGC adjustment: 8 stage TGC adjustment

Frequency Conversion: 2.5MHz ,3.5MHz ,4.5MHz ,5.0MHz, 5.5MHz, 6. 5MHz

7.5MHz, 8.5MHz,10.0MHz

Image magnification: ×1.0,×1.2,×1.5,×2.0

Measurement: distance, perimeter, area, volume, pregnant weeks etc. heart rate and slope under M mode

Cine Loop: uninterrupted replay or step forward/backward replay for 256 images

Focus: Electron focusing, free combination of focus

Detective depth: ≥190mm

Resolution: (vertical direction): ≤1mm (depth ≤130mm)  ≤2mm(130mm＜depth ≤160mm)

(cross direction) ≤3mm (depth ≤130mm) ≤4mm(130mm＜depth ≤160mm)

Blind Zone: ≤4mm

Probes: Convex Array Probe, Linear Probe, Intra-cavity Probe

Image: Freezing, real time, selective enlargement, upwards/downwards and left/right turnover

Size of monitor: 10 inches SVGA Monitor

G/W:14KG

Standard Configuration

Main unit with 10 inches SVGA Monitor,

2.5-7.5Mhz mutli-frequency convex array probe

8 TGC control,

256 frames Cine loop memory,

Pseudo Color Image output port (PAL-style),

B,2B, 4B, B/M, M display mode,

Image zoom in & Partial Zoom,

Image permanent storage.

Options

3.5MHz convex array probe

7.5 Mhz high frequency linear probe

5.0Mhz micro-convex array probe

7.5 Mhz trans-rectal probe

(2.0/3.5/4.5/5.0/5.5/6.5/7.5)MHz convex probe;    (5.0/7.5/8.5/10.0)MHz linear probe;

(5.0/7.5/10.0)MHz trans-rectal probe;          (4.0/5.0/5.5)MHz micro-convex probe;
