EEG Parameter List & Pictures

       Mode

Parameter

CN-KT88-1016

CN-KT88-1018

CN-KT88-2400

CN-KT88-3200

Numbers of channels

16 channels EEG

16 channels EEG,

2 channels ECG

19 channels EEG,

1 channel ECG,

1 channel EMG,

2 channels EOG,

1 channel Breath

32 channels EEG

Speed of sampling

100 Hz/channel

100 Hz/channel

200 Hz/channel

200 Hz/channel

Precision of sampling

12 bit

12 bit

12 bit

12 bit

Input impedance

≥10MΩ

≥10MΩ

≥10MΩ

≥10MΩ

Level of noise

≤5uV Vp-p

≤5uV Vp-p

≤5uV Vp-p

≤5uV Vp-p

Common mode rejection ratio

≥90dB

≥90dB

≥90dB

≥90dB

Magnifying multiple

10 000

10 000

10 000

10 000

Filter constant

Freeosetting in full digital

Freeosetting in full digital

Freeosetting in full digital

Freeosetting in full digital

Speed of gathering

15, 30 mm/s

15, 30 mm/s

15, 30, 60 mm/s

15, 30, 60 mm/s

Speed of displaying

5, 10, 15, 30, 60, 120 mm/s

5, 10, 15, 30, 60, 120 mm/s

5, 10, 15, 30, 60, 120 mm/s

5, 10, 15, 30, 60, 120 mm/s

Speed of playing

12310204060

12310204060

12310204060

12310204060

Displaying amplitude

12510121520 mm/s

12510121520 mm/s

12510121520 mm/s

12510121520 mm/s

Interference rejection ratio

≥30dB

≥30dB

≥30dB

≥30dB

Optional function

 Null

Video

Video, Support the function of intraoperative monitoring & sphenoidal electrodes; (optional parameters: Spo2)

Video,Support the function of intraoperative monitoring and sphenoidal electrodes

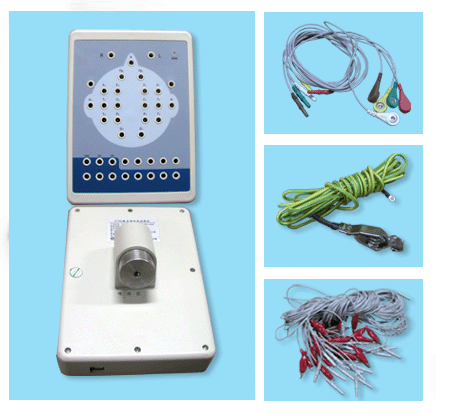

16 Channels Digital EEG System CN-KT88-1016

Features

Method of 10/20 electrodes placement under international standard system, can change leads ways while replaying, and set electrode connection mode at will.

Powerful replaying function: support consecutive and rolling replaying models, adjustable amplitude and replaying speed. Special vertical time line, which marks the collecting time, divides the waveform in one second into 5 parts and convenient for doctor to analyze the waveform.

Multifunctional digital filter system, and provides many filtering methods.

Analyze and distill manifold parameters automatically. Choose and analyze many segments of wave at the same time.

Paritial amplificatory window ,more accurate measurement of the wave and the  measure results can be adjusted manual.

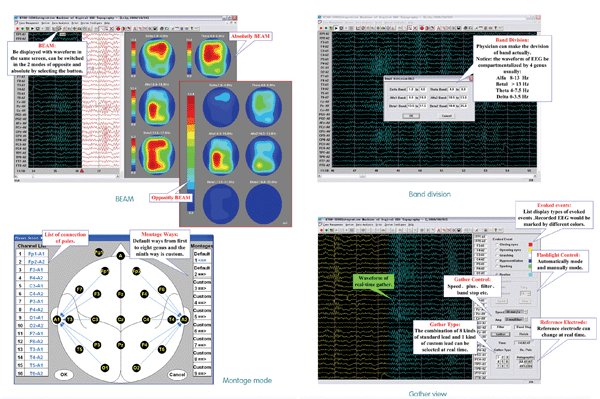

 Several models of BEAM can be displayed in the same screen with brainwave, such as three-dimensional rotary of BEAM, power spectrum graph, numerical BEAM, compressed spectrum graph and other graths.

Professional isolation transformer, dual power supply isolation system and optoelectronic data transmission to ensure security. Use USB interface to transmit data which just need to be inserted. Distance of digital signal transmission is up to a maximum of 30 meters. Patients and doctors can be operated in different rooms and   monitoring system is optional.

8.Multifunctional flashlight of USB interface, and frequency can be controlled manually or automatically.

9.The perfect medical records management, convenient for data investigation, looking up patient case and modifying his (or her ) information.

Report with incorporating pictures and text, user could not only select report mode and edit it but also select the information to print out.

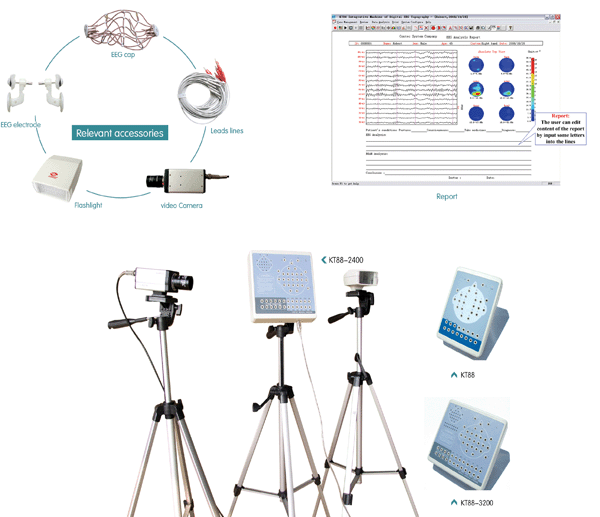

Digital synchronic system for video monitoring, recording and replaying. Video system of EEG graph. Long-distance transmission of medical records.

12. Option the portable computer to consist the portable EEG.

13.16 channels EEG and no video function.

14. It can load one template of report into office word.

15 .Physicians could add tag information at where it is needed to.

16. Transform the case file into EDF form in order to data or academic exchange.

17. Physicians could add events by himself, name it and define color. Set modes of display event expediently.

18. Export or load the case file.








19 Channels Digital EEG System CN-KT88-2400

Features

1. Method of 10/20 electrodes placement under international standard system, can change leads ways while replaying, and set electrode connection mode at will.

2. Powerful replaying function: support consecutive and rolling replaying models, adjustable amplitude and replaying speed. Special vertical time line, which marks the collecting time, divides the waveform in one second into 5 parts and convenient for doctor to analyze the waveform.

3. Multifunctional digital filter system ,and  provides many filtering methods.

4. Analyze and distill manifold parameters automatically. Choose and analyze many segments of wave at the same time.

5. Paritial amplificatory window ,more accurate measurement of the wave and the  measure results can be adjusted manual.

6. Several models of BEAM can be displayed in the same screen with brainwave, such as three-dimensional rotary of BEAM, power spectrum graph, numerical BEAM, compressed spectrum graph and other graths.

7.Professional isolation transformer, dual power supply isolation system and optoelectronic data transmission to ensure security. Use USB interface to transmit data which just need to be inserted. Distance of digital signal transmission is up to a maximum of 30 meters. Patients and doctors can be operated in different rooms and    monitoring system is optional.

8.Multifunctional flashlight of USB interface, and frequency can be controlled manually or automatically.

9.The perfect medical records management, convenient for data investigation, looking up patient case and modifying his (or her ) information.

10.Report with incorporating pictures and text, user could not only select report mode and edit it but also select the information to print out.

11.Digital synchronic system for video monitoring, recording and replaying. Video system of EEG graph. Long-distance transmission of medical records.

12. Option the portable computer to consist the portable EEG.

13. It could select more parameters: sleep module, ECG, EOG, EMG, Br

14. It can load one template of report into office word.

15 .Physicians could add tag information at where it is needed to.

16. Transform the case file into EDF form in order to data or academic exchange.

17. Physicians could add events by himself, name it and define color. Set modes of display event expediently.

18. Export or load the case file.













32 Channels Digital EEG System CN-KT88-3200

Features

1. Method of 10/20 electrodes placement under international standard system, can change leads ways while replaying, and set electrode connection mode at will.

2. Powerful replaying function: support consecutive and rolling replaying models, adjustable amplitude and replaying speed. Special vertical time line, which marks the collecting time, divides the waveform in one second into 5 parts and convenient for doctor to analyze the waveform.

3. Multifunctional digital filter system, and provides many filtering methods.

4. Analyze and distill manifold parameters automatically. Choose and analyze many segments of wave at the same time.

5. Paritial amplificatory window ,more accurate measurement of the wave and the  measure results can be adjusted manual.

6. Several models of BEAM can be displayed in the same screen with brainwave, such as three-dimensional rotary of BEAM, power spectrum graph, numerical BEAM, compressed spectrum graph and other graths.

7. Professional isolation transformer, dual power supply isolation system and optoelectronic data transmission to ensure security. Use USB interface to transmit data which just need to be inserted. Distance of digital signal transmission is up to a maximum of 30 meters. Patients and doctors can be operated in different rooms and    monitoring system is optional.

8.Multifunctional flashlight of USB interface, and frequency can be controlled manually or automatically.

9.The perfect medical records management, convenient for data investigation, looking up patient case and modifying his (or her ) information.

10.Report with incorporating pictures and text, user could not only select report mode and edit it but also select the information to print out.

11.Digital synchronic system for video monitoring, recording and replaying. Video system of EEG graph. Long-distance transmission of medical records.

12. Option the portable computer to consist the portable EEG.

13. Gather 32 channels EEG .

14. Physicians could add tag information at where it is needed to.

15. Transform the case file into EDF form in order to data or academic exchange.

16.Physicians could add events by himself , name it and define color. Set modes of display event expediently.

17. It can load one template of report into office word.

18. Export or load the case file.
