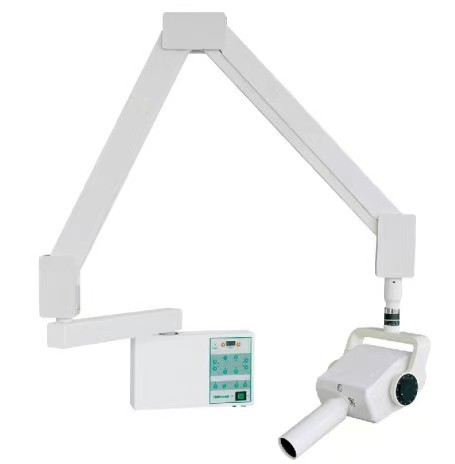

CN-4602 Wall-Mounted Type Dental X ray Machine

Features
*The microprocessor-controlled timer brings high-tech x-ray imaging at your fingertips.
 *The control panel allows an accurate and fast exposure time selection while protecting the head during X-ray examinations
* Fitted with 70KVp 8mA tube with preheating grid. the machine has been specially designed for intra oral dental diagnosis applications
*Complies with local and international regulations on ionizing radiation protection for maximum safety
*The soft positional arm ensures naturally smooth and well-balanced movements. It is easy installed at the desired height and length
*Its ergonomics and design have been studied to meet the requirements of the mast demanding practices in matters of floor space optimization.


Main Specifications

* Classification: Electromedical, Class I, Type B

* Power supply : 220v±10%,50hz, 1kva

* Tube voltage:70kv

* Tube current: 8ma

* Focus size:1.5mm

* Total filtration: 2.5mmAL

* Exposure tion:0.2-4sec

* Leak radiation: outside one  meter≤ 0.002gy/h

* Optional: tube current:0.5ma   focus size:0.8mm
