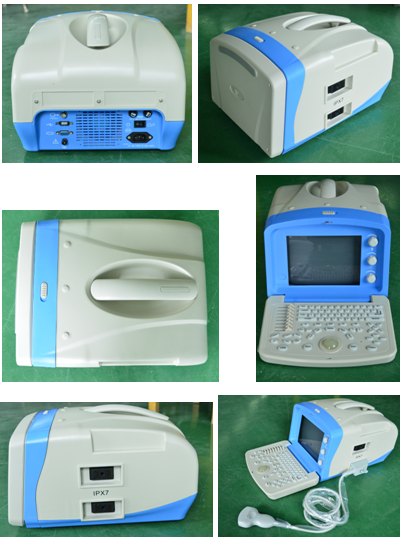

CN-518 Portable Ultrasound Scanner

Features

Powerful measurement & calculation software packages

8-Segment TGC adjustment

10 inch LCD Monitor

OB measurements: BPD, GS, CRL, FL, AC, HC ,etc

Permanent function of image store: 32 images

Back-lit keyboard

2 probe connectors

Probe automatic identification

Pseudo Color Image Display Function

Specification

Scanning mode: Convex/Linear/Trans-vaginal

Display modes: B, B+B, B+M, M, 4B

Scanning depth: 240mm

Gray scales: 256

Body marks: 44

Image conversion: up/down, left/right, black/white

Function of puncture guide

Per: 4-stage per function

Printer function: can connect laser printer and Video printer directly

Comment: Date, Name, Sex, Age, Hospital, Annotation

Zooming: *0.8, *1.0, *1.2, *1.5, *2.0

Port: USB 2.0, VGA, Video connector

Wide application: abdomen, OB/GYN, urology, cardiology etc

USB Function of image store: more than Sixteen thousand images

Power supply: AC 110V-240V, 50HZ/60HZ

Probe connector: 2

Measurement

General menu: Distance, Area, Volume, Angle, Ellipse

Obstetrics menu: GS, CRL, BPD, HC, AC, FL, Fetus Weight

Heart menu: Distance, Time, Slope, Rhythm

Standard Configuration

Main unit

10 inches LCD Monitor

60R/3.5MHZ Convex array probe

USB 2.0, VGA port

Video connector

Options

L40/7.5MHZ Linear array probe

20R/5.0MHZ Micro-Convex array probe

13R/6.5MHZ Trans-vaginal array probe

Video Printer
