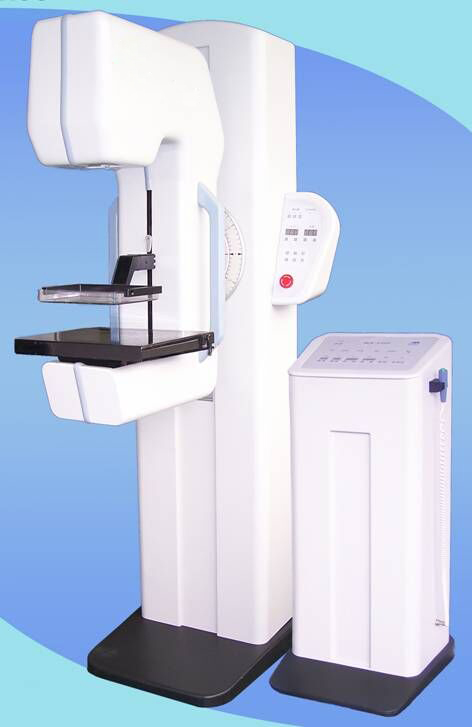

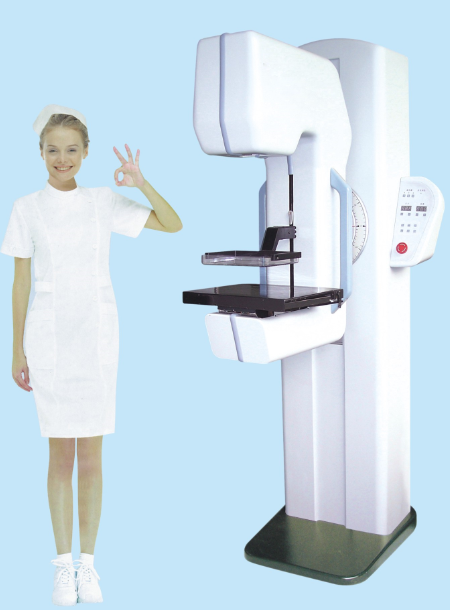

CN-MO50 Mammography High Frequency X-Ray Machine

Features

l High frequency and high pressure:

50 KHz radio impulse DC power supply, which ensures the stability of X-ray, thus it raises the effective use factor of X-ray, simultaneously reduces the dosage that patient receives from X-ray.

l Micro focus rotating anode X-ray tube:

To ensure clear image, its image resolution can reach over 18 lp/mm, its density resolution and the smallest calcification resolution may reach up to 1.19 mm and 165 µm respectively.

l Crystal automatic exposure control system:

CN-MO50 uses advanced crystal X-ray detector, composes of multi-spot sampling automatic exposure control system, and it has high sensitivity and rapid respond, which ensures that the mammary gland of different ages and thicknesses can obtain the X-ray film with the best irradiation quantity.

l Limitless electrical compressor:

To realize the fast rise, fast drop, automatic deceleration and compression after contacting breast tissue, it will automatic stop when oppress to the preset pressure. It not only reduces the patient’s pain as oppression but also is convenient for operation.

l Automatic decompression device:

After patient takes X-ray picture, compressor immediately automatic releases the oppression to the patient’s breast.

l Manually fast decompression device:

In the event of accidental power failure while patient takes X-ray picture or is in the oppression process, only need to move the decompression key by hand, which may cause the compressor to fast lift, and then relieve the oppression to patient’s breast immediately.

l Carbon-based dense vein ray filter:

By effectively blocking the scattered X-ray, it is advantageous to further improve picture’s quality.

Purpose and Range

It is suitable to imaging diagnosis and physical examination of mammary gland illness.

Taboo

The seriously patients cannot sit down, the patients have acute inflammation on mammary gland, and the patients during breast-feeding period are tabooed to take pictures on mammary gland.

Operating Environmental Condition

Its normal work region is 20 square meters.

   In handling room：

No smoking

Notice: fire prevention (To make urgent fire precautions according to the request of local fire department).

Operating environmental requests:

Temperature range: 10~30℃

Relative humidity: ≤75%

    Atmospheric pressure: 70 kPa~106 kPa

Power source request:

This equipment belongs to the stationary ordinary equipment

    Supply voltage: 220 VAC±10%

    Frequency: 50 Hz±1 Hz

Maximum power: 5 KVA

    Security grounding: ≤0.1Ω

X-ray protection:

Uses single lead screen or compartment operation.

X-ray Mammography Scanner room

It should have X-ray protective measures conform to the national related requirements  (based on the examination of local quarantine station), there is single-phase switch box conforms to security standard in room, the security grounding and neutral line must be separated, and the length of power cord of this machine is 5 m.

SPECIFICATIONS

POWER 220VAC,30A

High voltage generator

High frequency constant voltage: 50kHz

Voltage range: 22---35KVp,1KV step

Max.Current:100mA

Max.Output power: 5kW

Exposure condition control: Manual/Auto

X-ray Tube

Dual focus:0.2mm/0.4mm

Anode heat capacity:150KHU

Anode type: Rotating Anode

Anode material: Mo

Compressor

Operating mode: Auto(motor)

Compression force/method:Max.18Kg/Auto Intelligent, flexible fast pressure release

Compression force display: LED

Compressor paddle movement range:280mm

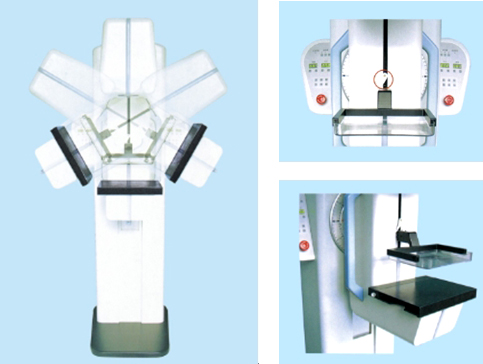

C-arm

Rotating angle: +180/-160

SID: 65cm Fixed

Anti-scatter grid: Carbon based fine plate

Cassette size:18×24cm OR 24×30

Dimensions Gantry:1810mm×880mm×880mm

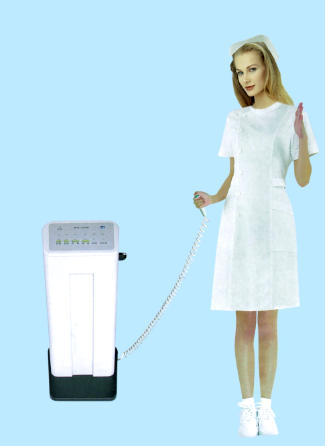

Console:960mm×480mm×500mm

C-arm vertical movement range:600mm

Overall weight: 200Kg
