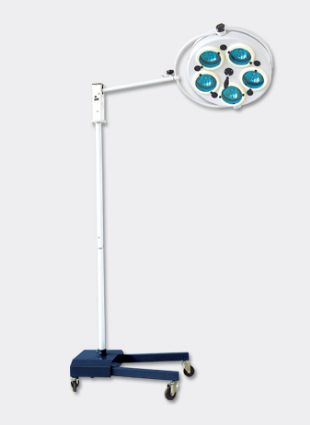

CN-S05S Cold Light Shadowless Operating Lamp

Feature
It adopts light sources from different positions for focus to eliminate shadows of different parts of medical workers. Vertical mobile setup with braking device is not limited by the space of surgical room and is safe and reliable in use.

Feature

It adopts light sources from different positions for focus to eliminate shadows of different parts of medical workers. Vertical mobile setup with braking device is not limited by the space of surgical room and is safe and reliable in use.



Specification

Illuminance 160000Lx≥Ec≥50000Lx

Color Temperature: 4000±500k

Color rendering index: 100≥Ra≥85

Depth of light beam ≥500

The value of the total irradiance

(service range for temperature rise≤10℃): <6mW/m2lx

Total irradiance (Temperature rise on the head of patient under surgical operation≤2℃) ≤600W/m2

Power supply: 220V±10%,50Hz/110V,60Hz

Rated Voltage of Bulb 24V

Rated Power of Bulb 125W

Input power 150VA

Option: Tungsten Halogen Bulb
