CN-3400/ CN-3400C 2.8 inch Vital Sign Monitor

Features
Four parameters: NIBP, SpO2, Pulse Rate, Temperature
* SpO2 waveform, PR strength display
* 2.8 inch color LCD with real time display
* Storage/Review trend data up to 3888 groups, data save time interval settable
* Audio and visual alarm when parameters exceeded and sensor-off
* Built-in rechargeable Li-ion battery, up to 4 hour running time
* Automatic shutdown for power saving, shutdown time interval settable

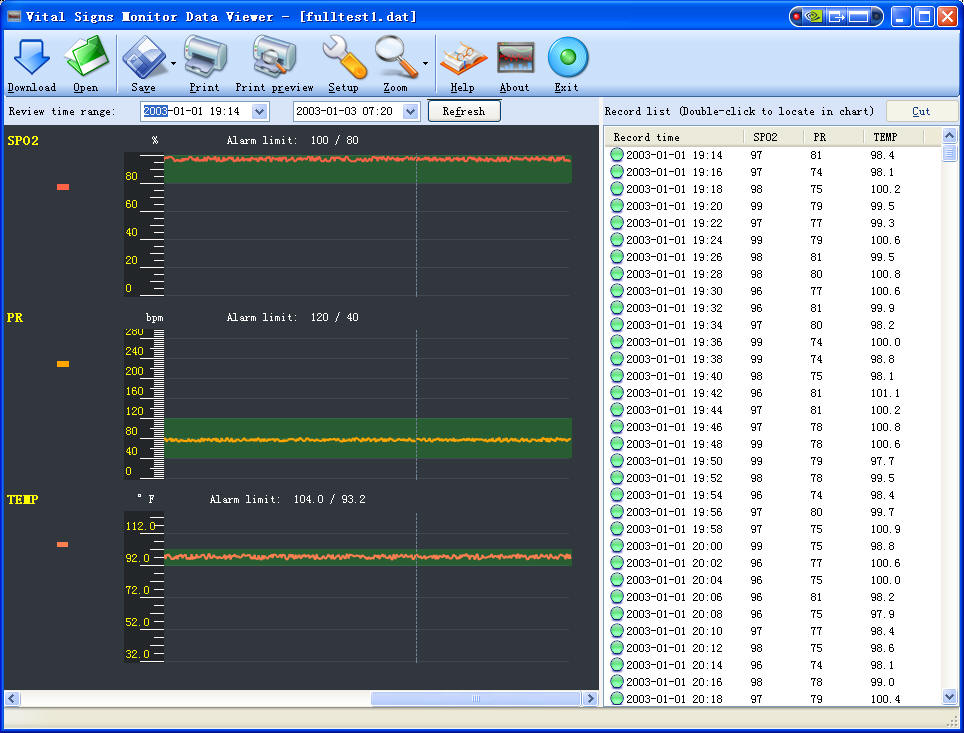

* Via USB to connect with the computer, unique software for telemonitoring
by transmitting data synchronously via internet
* Battery capacity indicatior and prompt when battery low

Technical Specifications

*NIBP

Measure Method: Automatic oscillometric

Patient: Adult and Pediatric

Measurement unite: mmHg/kPa selectable

Measurement mode: Manual, Auto, STAT

Measurement Type: SYS, DIA, MAP

Measurement interval in AUTO mode:1,2,3,5,10,15,20,30,45,60Min

Measuring period in STAT mode: 5 Min

Measure range:

Adult:302550 mmHg; child: 30160 mmHg

Accuracy: 1 mmHg

Alarm limits range:

SYS : Upper limits70250 mmHg,     Lower limits 60180 mmHg

DIA : Upper limits 40200 mmHg,     Lower limits35150 mmHg

MAP : Upper limits 60230 mmHg,      Lower limits 50160 mmHg



*SpO2

Measure Range:  35100%

SpO2 Accuracy:  2%(7099%), 3%(4070%)

Pulse Rate Range: 0254 bpm

Pulse Rate Accuracy: 1 bpm

*Alarm limits range:

SpO2  upper limits : 95100%   lower limits: 8596%

Pulse Ratekeep up with the heart rate



*Temperature

Channel: 1

Input: Body surface thermal-sensitive resistor temperature sensor

Measurement Unit: °C/°F selectable

Measure range: 050℃

Alarm limits range: Upper limits 3645℃   Lower limits 3438℃

Measure accuracy: 0.1℃



*System Specifications

Alarm ON/OFF: controlled by general switch and parameter switch (two levels)

Display mode: LED and 2.8’ color LCD screen

Trend data: 3888 groups of SpO2, TEMP,SYS, DIA  trend data, The record time interval can be set to 5 Sec. to 120 Sec. , so that the record time rang can be up to 128 hr.

AC power adaptor

Input: AC 100240V, 50/60Hz, 0.7A

Output: DC 5V2.5A

Internal battery

Type: 2800mAh/3.7V Li-ion rechargeable battery

Operating Time: 6 hours of stand-by time with a full battery.

Recharge time: 8 hours

Dimension:280mm×190mm×100mm

Net Weight : 1000g
