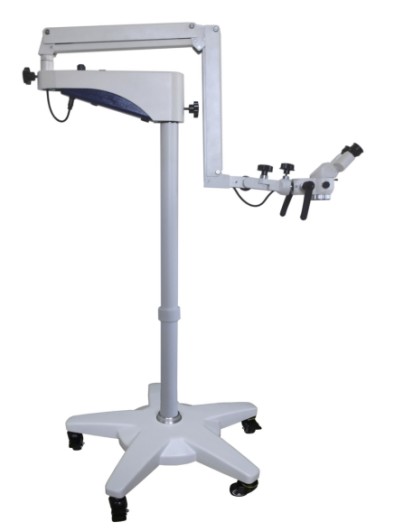

CN-102 Multi-function Operation Microscope

Our Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.

Specifications:

Observation angle: 45°tilted

Magnification of binocular: 6X

Interpupillary distance: 50mm-80mm

Diopter: ±5D

Focal length of objective: F=200mm and F=300mm two objectives

Magnification changer: 3-step: 0.6X, 1X, 1.6X

Total magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X

Linear field: 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm

Fine focusing distance: 10mm

Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx

Filter: Build-in green and yellow filters

Balancing arm: 2-part arm with universal joints

Floor stand: 2-part column fitted on the five-star base with casters

Power supply: AC100V-AC240V

Optional accessories: Objective F=250mm & F=400mm, Wall mount bracket

Item	CN-101	CN-102	CN-120	CN-130
Binocular observation	Straight	45º Tilted	Straight	45º Tilted
Magnification of binocular	6X
Interpupillary distance	50mm-80mm
Diopter	±5D
Magnification changer	3-step magnification change: 0.6X,1X,1.6X
Focal length of objective	Two objectives: F=200 & F=300mm (M45x0.75mm)
Total magnification	3X, 5X, 8X, 4.7X, 7.5X, 12X
Linear field	60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
Beamsplitter	No		50:50 Beamsplitter
Video camera adapter			C-mount 1/3 inch video camera attachable
Fine focusing range	10mm
Filter	Built-in green and yellow filters
Balancing arm	2-part arm with universal joints		2-part arm with universal joints, counterweight adjustable and can be locked
Illumination system	Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx
Stand	2-part column fitted on the five-star base with casters		2-part column fitted on the five-star base with casters
Optional accessories	Demonstrator, Camera (MDCC320, U3CMOS03100KPA, XCAM1080PHA, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S22E360H, X22, H1766), Objective F=250mm & F=400mm, Table mount clamp, Table mount bracket
