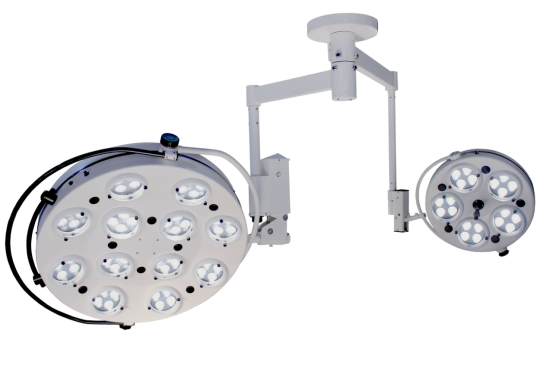

CN-S1205 LED Cold Light Shadowless LED Operating Lamp (Apertured Type)

Use of multiple different sources, by focusing knob, so the beam is irradiated from different locations surgery, reduce the shadow medical staff head, hands and other parts caused. The illumination can be adjusted according to actual needs.

Specification

Illumination of Main lamp (lux) 160000/80000

Illumination of Supple mentary lamp (lux) 50000

Color Temperature (K) 4000±500

Color rendering index 100≥Ra≥85

Depth of light beam (mm) ≥500

The value of the total irradiance(service range for temperature rise≤10℃)  ＜6mW/m2lx

Total irradiance（Temperature rise on the head of patient under surgical operation≤2℃) ≤600W/m2

Power supply(AC) 220V±10% 50Hz

Rated voltage of bulb 24V

Rated power of bulb 80W/25W

Input power(VA) 500
