CN-K800 Cassette Autoclave (2L / 5.2L / 6L)

Application

It can be used in medical organizations like dental clinics, ophthalmology department, E.N.T. department, gynecology department, surgical operation room to sterilize the surgical instrument, glassware etc.

Mainly Performance and Characteristics

Fast: 9~15 minutes working cycle, faster than normal steam sterilizer.

Safe: The short heat time for medical instrument, make the instrument safety and keep the working life longer.

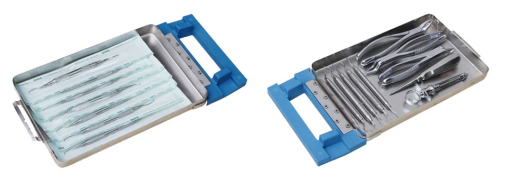

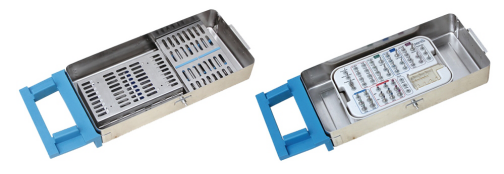

Convenience: Simple operating, sterilize cassette can be used as loading and transport tools, and storage. Easily sterilize and use.

Micro-computer control technology, LCD screen, touch button input

Temperature, pressure, time, working status, error alarm display on screen

Displace, heating, pressure rising, sterilizing, and exhaust, dry. Whole cycle is controlled by computer and automatic running.

Build-in steam generator, steam source is not needed from outside.

Digital printer can print the cycle time and various parameters of the running cycle.

Multiple Sterilize Cycle Provide

Our sterilizer provides 4 kind of automatic sterilize cycle. Each cycle designed for one specific instrument.

Automatic Detection

If the parameters like temperature, pressure, time haven’t achieved the setting value, or the autoclave has problem when running, the micro-computer system will halt the cycle running and display the problem on the LCD screen.

Specifications

Design pressure: 0.28Mpa

Design temperature:150℃

Sterilization Temp range: 105-136℃

Temperature uniformity: ≤±0.5℃

Temperature display precision: 0.1℃

Chamber material: SUS304 Stainless Steel

Maximum Working Pressure: 0.24Mpa

Water Tank Capacity: 3.4L

2 Liter

Sterilization chamber volume：2 L

Chamber Dimensions（L×W×H）: 280*180*38mm

Overall Dimensions（L×W×H）: 590*460*190mm

Net Weight：40 kg

5.2 Liter

Sterilization chamber volume：5.2 L

Chamber Dimensions（L×W×H）: 380*180*80mm

Overall Dimensions（L×W×H）: 590*460*190mm

Net Weight：45 kg

6 Liter

Sterilization chamber volume：6 L

Chamber Dimensions（L×W×H）: 490*180*80mm

Overall Dimensions（L×W×H）: 590*460*190mm

Net Weight：50 kg
