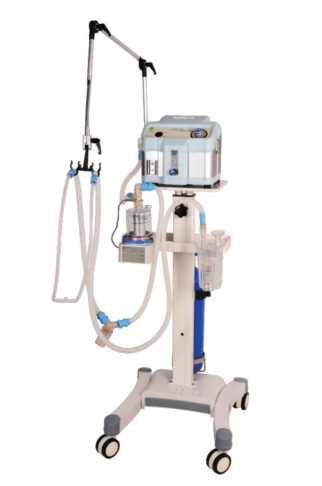

CN-CP300 Bubble CPAP Ventilator

Bubble CPAP (Infant Continuous Positive Airway Pressure) Ventilator is a sort of special medical equipment for supporting of babies’ breath which devised and manufactured based on the wide application of closed continuous NCPAP in department of pediatrics. It uses on the course of ventilation treatment of Nasal-CPAP for premature, neonate, infant to children below 14 year old. The mode of CPAP can reduce babies’ WOB effectively, while keeping the autonomous respiration well.

Superiority：

Supply a safe and controllable FIO2;

Keep the FRC effectively;

Reduce infant’s WOB;

Reduce the need of invasive mechanical ventilation;

Supply better warm and humid gas;

Reduce the occurrence rate of the CLD;

Improve the physical sighs, such as height, weight.

Performance parameter:

FIO2: 21%~100%

Flow: 0~18LPM

CPAP pressure: 0.3~1.0kPa(3~10cmH2O)

Pressure lack alarm: When the oxygen-source suspended or interrupted, sound alarm.

Noise: <55dB(A)

CPAP Generator:

1.It is easy to set the oscillating gas pressure from 3cmH2O to 10cmH2O through adjusting the CPAP pressure bar.

2.The automatic regulating mechanism of water-level ensure the constant CPAP pressure.

3.The dismountable chamber is very convenient.

Common Parameter:

Gas-source require: oxygen 0.3MPa~0.4MPa

Power: a.c. 220V±22V 50Hz±1Hz
