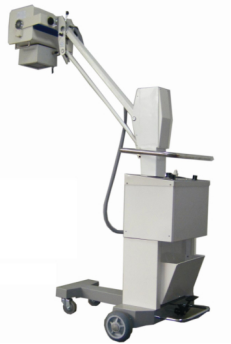

CN-70BY 70mA Mobile X-ray Machine

This Analog X-ray apparatus features fullwave rectification and modular X-ray tube head. The frame of the unit is of cantilever construction, and is compact in design and easy in movement. The machine can be used for
Radiography in hospital wards or operating rooms.

_@KE`6F4QPC)(QN55H$6_30.pngThis Analog X-ray apparatus features fullwave rectification and modular X-ray tube head. The frame of the unit is of cantilever construction, and is compact in design and easy in movement. The machine can be used for
Radiography in hospital wards or operating rooms.



Specifications

1.Power requirements

  Voltage:180-240V  Frequency:50Hz

  Internal resistance: ≤0.8Ω  Rating:5.5kVA

  Current:Maimum15A for radiography

2.Time:0.063 to5.0 steps electronic

3.Maximum height from X-ray tube focus to floor>1720mm

4.Minimum height from X-ray tube focus to floor<500mm

5.Collimator:Maximum film size at 1000mm

  Focal distance: 400×400mm

6.Maximumermote control distance:6m

7.X-ray tube focus:2.68.Unit moving force: 250N

9.Net weight of the unit:95kg



Maximum ratings

Current(mA)

Voltage (kVp)

Exposure time(second)

30

90

0.063-5.0

50

90

0.063-1.0

80

0.063-4.0

70

70

0.063-1.0
