CN-50BY 50mA Mobile X-ray Machine

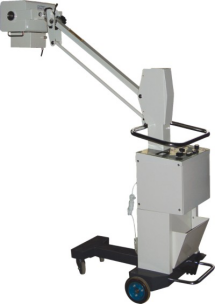

This X-ray apparatus features full wave rectification and modular X-ray tube head. The frame of the unit, of cantilever construction, is compact in design easy of movement. The machine can be used for radiography in hospital wards or operating rooms.

S{8363(NLY65Z~R)2~SLUJK.pngThis X-ray apparatus features full wave rectification and modular X-ray tube head. The frame of the unit, of cantilever construction, is compact in design easy of movement. The machine can be used for radiography in hospital wards or operating rooms.



Specifications

1.Power requirements

  Voltage:180-240V  Frequency:50Hz

  Internal resistance: ≤1ΩRating:5k VA

  Current:Maimum15A for radiography

2.Time:0.063 to 5.0 steps electronic

3.Maximum height from X-ray tube focus to floor>1720mm

4.Minimum height from X-ray tube focus to floor<500mm

5.Collimator:Maximum film size at 1000mm

  Focal distance: 400×400mm

6.Maximumermote control distance:6m

7.X-ray tube focus: 2.6

8.Unit moving force: ≤250N

9.Net weight of the unit:95kg







Kv      S

mA

1.0

2.5

4.0

5.0

30

90

90

90

90

40

90

90

90

/

50

90

80

/

/
