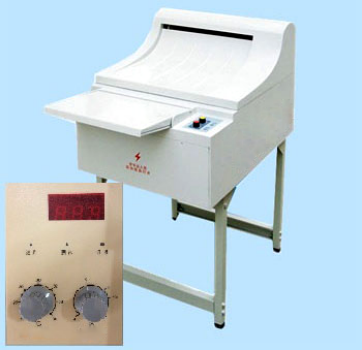

CN-380H Automatic X-ray Film Processor (3 Groove)

Feature
*2.4 inch LCD screen, can display developer, fixer, drying temperature and processor speed
*with Intel chip, it has the function of failure analysis and troubleshooting.
Specifications
1.Film size： *Standard film: single piece（76×152～356×432）（mm）（3〞×6〞～14〞×17〞）
2.Max. film width: 14’’, length have no limited.
3.Tank volume: Developer 8.5L, fixer 8.5L, water 8.5L
4.Processor speed: 90s-360s adjustable
5.Develop time: 20s-90s choice
6.Develop temp: 20℃-42℃ adjustable
7.Drying temp: 40℃-60℃ adjustable
8.Developing Capability: 80films/hour (14’’x17’’), 120films/hour(10’’x12’’)
9.Supplement fluid methods: automatic or manual
10.Supplement fluid volume: setting between 20ml-400ml
11.Water wash control: Control by magnetic valve automatically, inflow water while film in
12.Film in mode: Photoelectric reaction
13.Developing sequence: Developing, fixing, washing, drying
14.Stand by: 24hours
15.Noise: ≤55
16.Size: L*W*H 880x560x1100mm
17.Net Weight:60KGS, Gross Weight:80KGS
