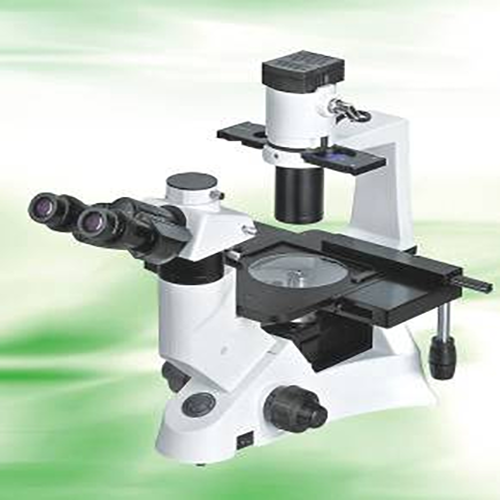

CN-NIB-100 Inverted Biological Microscope

Viewing Head: Trinocular Head Inclined at 30°, Interpupillary 48-75mm
Eyepiece: High-point, Extra Wide Field Eyepiece EW10×/22
Nose Piece: Quintuple Nose Piece
Objective: LWD Infinitive Plan Objective 4×/0.1 WD 18mm, 40×/0.6 WD 2.6mm (Cover Glass 1.2mm),Infinitive Plan Phase Objective PH10×/0.25 WD 10mm, PH20×/0.4 WD 5.1mm
Stage: Plain Stage 160×250mm,Glass Insert, Auxiliary Stage 70×180mm
Focusing: Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation
Condenser: ELWD Condenser NA0.3, LWD 72mm (without Condenser 150mm)
Phase Annulus: 10×-20×、40× Phase Annulus Plate
Filters: Diameter 45mm, Blue, Green and Ground Glass
Illumination: Halogen Lamp 6V30W

Feature

The Optimal Choice for Viewing Incubating Cell Tissue.

Excellent Optical Function with Infinitive Optical System.

Innovative Stand Structure, Sharp Image Display, Convenient Operation and Special    Design for Viewing Incubating Cell Tissue.

With LWD Infinitive Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier.

With Pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimen.

Different Holders for Various Observations.



Standard Configuration

Viewing Head: Trinocular Head Inclined at 30°, Interpupillary 48-75mm

Eyepiece: High-point, Extra Wide Field Eyepiece EW10×/22

Nose Piece: Quintuple Nose Piece

Objective: LWD Infinitive Plan Objective 4×/0.1 WD 18mm, 40×/0.6 WD 2.6mm (Cover Glass 1.2mm),Infinitive Plan Phase Objective PH10×/0.25 WD 10mm, PH20×/0.4 WD 5.1mm

Stage: Plain Stage 160×250mm,Glass Insert, Auxiliary Stage 70×180mm

Focusing: Coaxial Coarse and Fine Adjustment, Vertical Objective Movement,    Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation

Condenser: ELWD Condenser NA0.3, LWD 72mm (without Condenser 150mm)

Phase Annulus: 10×-20×40× Phase Annulus Plate

Filters: Diameter 45mm, Blue, Green and Ground Glass

Illumination: Halogen Lamp 6V30W



Optional

Objective: LWD Infinitive Plan Objective 10×/0.25 WD 10mm, 20×/0.4 WD 5.1mm, Infinitive Plan Phase Objective PH40×/0.6 WD 2.6mm (Cover Glass 1.2mm)

Stage: Attachable Mechanical Stage X, Y Coaxial Control, Moving Range 120×78mm, Terasak Holder, Ø38mm Petri Dish Holder, Ø54mm Slide Glass Holder

Centering Telescope: Centering Telescope ( Ø30mm)

Phase Annulus: 10×-20×40× Phase Annulus Plate adjustable

Photo Attachment

Video Adapter: Video Adapter with C Mount
