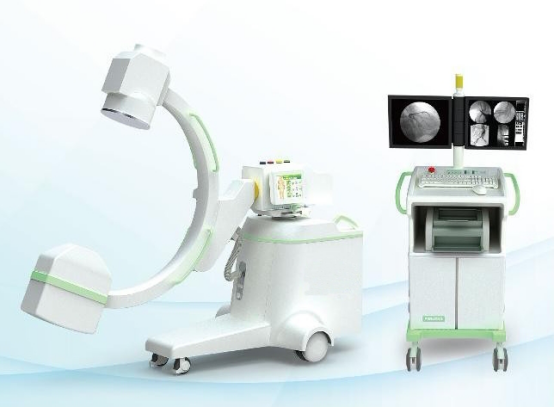

CN-7000A/B High Frequency Mobile C-arm System

Usage
CN-7000A/B C arm is wildly used in Department of Orthopedics, Department of General Surgery, orthopedic surgery department, Urology Surgery, Spine Surgery, Abdominal Surgery, Department of Pain Treatment, Cardiology, Gastroenterology, Gynecology, Operating Room, etc.

Usage

CN-7000A/B C arm is wildly used in Department of Orthopedics, Department of General Surgery, orthopedic surgery department, Urology Surgery, Spine Surgery, Abdominal Surgery, Department of Pain Treatment, Cardiology, Gastroenterology, Gynecology, Operating Room, etc.



Features

1. Super High-power, micro-focus and high-frequency generator optimize digital images.

2. Domestic leading full pulse fluoroscopy, Intelligent control of exposure makes super low dose.

3. Multiple operating modes to meet various clinical needs.

4. Muti-leaf and vertical light shadow control, effectively, reduces soft X-ray ,dramatically reducing the skin dose.

5. Imported famous brand image intensifier and all-digital CCD camera providing high-quality and high-resolution images.

6. Dual high-resolution medical LCD monitors , largely improve image quality effect.

7 . The powerful digital graphic workstation standard configuration DICOM 3.0 interfaces and network perfect butt, support Worklist registration and manual registration dual registration modes

8. Workstation has the high-capacity digital storage function. Fluoroscopy and digital spot film(DSI) are all stored in digital format without any loss. It has powerful processing capabilities like edge enhancement, multiple images, gamma correctionmovie playback, window width/level, experts template mode, burn CD, etc.

9. Four-D electric motion control, accurate positioning, flexible and comfortable control. Super large frame design, provides lager diagnostic and watch spaces and more comfortable surgical operation environment. New design and new ideas brings superior experience.

10. Two panels of human graphical LCD touch screen provide intelligent ,fast and convenient operation. Dual motion control system and double foot brake for expose make this machine greatly meet the demands of clinical operations.

11. Excellent DSA and DSI function.(7000A DOES NOT HAVE THIS FUNCTION.)



Standard Configurations

CN-7000A

1. Four-D electric super-power same centre mobile C-arm main frame    1set

2. High-frequency and high-voltage X-ray generator and high frequency inverter power supply. (6.0kW, 60kHZ, 125kV)     1set

3. Toshiba 9 inch image intensifier    1set

4. Medical million-pixels ultra-low illumination digital camera    1set

5. Digital Data Acquisition and Processing Workstation   1set

6. Imported dense grain grids   1set

7. Electric adjustable collimator    1set

8.19 inch LCD display    2sets

9. Hand held controller    2sets

10. Human graphical LCD touch screen    2sets

11. Foot brake for exposure    2sets



CN-7000B

1. Four-D electric super-power same centre mobile C-arm main frame    1set

2. High-frequency and high-voltage X-ray generator and high frequency inverter power supply. (12kW, 60kHZ, 125kV)     1set

3. Toshiba 9 inch image intensifier    1set

4. Medical million-pixels ultra-low illumination digital camera    1set

5. Digital Data Acquisition and Processing System    1set

6. Imported dense grain grids    1set

7. Electric adjustable collimator    1set

8.19 inch Medical LCD display     2sets

9. Hand held controller     2sets

10. Human graphical LCD touch screen     2sets

11. Foot brake for exposure     2sets



Specifications

Category

Items

Content

Model

CN-7000A

CN-7000B

Electrical Performance

High frequency inverter power supply

Power outp:6.0kW

Inverter

Frequency:60 kHz

Power outp:12.0kW

Inverter

Frequency:60 kHz

Automatic & Manual Continuous Fluoroscopy

Tube voltage40kV125kV  continuously  adjustable

Tube current0.3mA4mA   continuously  adjustable

Automatic & Manual Enhanced Fluoroscopy

Tube voltage40kV125kV   continuously  adjustable

Tube current: 0.3mA8mA    continuously  adjustable

Automatic

&Manual pulse

Fluoroscopy

N/A

Tube voltage40kV125kV  continuously  adjustable

Tube current:0.3mA30mA   continuously  adjustable

Pulse frequency:0.1~25fps,continuously,

adjustable

DSI Digital Spotfilm Imaging

N/A

Optional 1-5  fps

Photography tube voltage tube current

40kV125kV   120mA

40kV125kV   160mA

X ray tube

X-ray tube special for high frequency

Rotary anode focus 0.3/0.6 mm

Anode thermal capacity:212kJ

Imaging

system

Image Intensifier

Toshiba 9" image intensifier

CCD camera

Medical million-pixels ultra-low illumination digital camera

CCU

Real-time acquisitionup and down image, left and right mirror imagecontinuous adjustable recursive noise reductionmulty images storageimage patching,LIH (last image freeze)

Monitor

19 inch LCD display

19 inch

Medical LCD display

Workstation software

Storage without loss,multi-image display, Image W/L real-time adjustment, grayscale conversion, interest area balance, Gamma correction,reversal,noise reduction, enhancement, smoothing,

sharpening, compression, enlargement, measure, mark, image  &

document report printing & typeset, Expert template, Dicom image sending, Dicom image print, movie playback, image burn record,  worklist registration, etc

Structure

Direction wheel and main wheel

Direction wheel can rotate in any directionmain wheel±90°

C-arm

Forward & backward 200mm by electrical power.

Revolution around horizontal axis : ±180° by electrical power.

Revolution around vertical axis: ±15° Manual

Slipping on orbit: 120°(+90°~-30°) by electrical power.

The  pillar up and down  is 400mm by electrical power.

SID1060 mm

C-arm open distance860 mm

Arch depth700 mm
