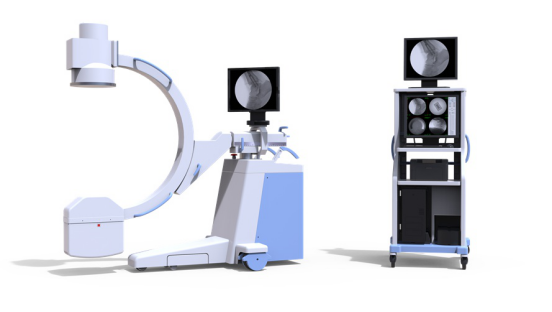

CN-112C High Frequency Mobile C-arm System

Usage
Orthopedics: restore bone translocation, reset, fixing
Surgery: taking foreign bodies out of the body, cardiac catheterization, implantable pacemakers, some of angiography and local photography etc.

Usage

Orthopedics: restore bone translocation, reset, fixing

Surgery: taking foreign bodies out of the body, cardiac catheterization, implantable pacemakers, some of angiography and local photography etc.

Features

1. Continuous pulse fluoroscope, it’s convenient to connect digital subtraction system.

2. With mega-pixel digital CCD photography, the image is clearer.

3. With unique image software processing technique, the image is clearer for doctors to operate and diagnose. Standard DICOM interface, it’s convenient to exchange information with hospitals.

4. Pulse fluoroscope has the advantage of low dose and clearer image, so it meets the needs of high precision, high difficulty minimally invasive surgery, which well protect the security of operator and patient.

5. Unique double foot brake controller design makes it convenient to control the instrument inside and outside the operation room. This design can also protect the health care professionals by reducing the probability to come into contact with the radiation.

6. Exclusive inside and outside monitor design makes it more convenient to observe the operation process either inside or outside the operation room. At the same time, this design can facilitate the outdoor teaching and the real-time observation of the surgical procedures.

7. With high-quality combined high frequency high-voltage X-ray generator, it can greatly reduce the amount of X-ray irradiation.

8. With a perspective KV, MA automatic tracking feature, so that the image brightness, sharpness automatically in the best condition

9. Adopting imported image intensifier, the quality is stable and reliable, and the image is of good clarity.

10. With unique base electric auxiliary support arm design, so it’s safer.

11. A unique hand-held controller design, which can control parameter set, equipment movement and radiation field, so the operation is more convenient.

12. With new design of mainframe, the appearance is compact and beautiful.

Standard Configurations

1. C-arm Mainframe 1 set

2. Combined high-frequency high-voltage X-ray generator and high-frequency power supply (5.0kW, 40 kHz, 120kV) 1 set

3. Imported 9 inch image intensifier 1 set

4. Medical mega-pixel ultra-low illumination digital radiography 1 set

5. Digital acquisition and processing station (See workstation list for detail information) 1 set

6. Imported dense grain grids 1 set

7. Electrical adjustable beam limiting device 1 set

8.19 inch IM medical LCD grayscale display 1 set

9.14 inch high-definition medical VGA interface (no flicker) 1 set

10. Unique hand-held controller 1 set

Category	Items	Content
Model		CN-112C
Electrical Performance	High frequency inverter power supply	Power:3.5KW Inverter frequency: 40 kHz

	Automatic fluoroscopy	Tube voltage :40 kv~120kv Tube current: 0.3mA~~4mA


	Manual fluoroscopy	Tube voltage :40 kv~120kv Tube current: 0.3mA~~4mA


	Pulse fluoroscopy	Tube voltage:40 kv~120kv, continuous Tube current : 4.1mA~~30mA continuous


	Photography tube voltage, tube current mAs	40KV~120KV, 20~100mA , 1~180 mAs

X-ray Tube	X-ray tube special for high frequency	Large focus:1.5,Small focus :0.3 Thermal capacity: 650kJ (867 kHu)

Imaging System	Image intensifier	Imported TOSHIBA 9 inch image intensifier
	CCD photography	Mega-Pixel digital medical CCD radiography 12 bit



	Monitor	19 inch IM medical LCD grayscale display 14 inch high-definition medical VGA interface Center definition is 1000 lines and frequency for picture refresh is 60 Hz.


	CCU (central control)	Real-time acquisition, continuous adjustable recursion, many images storage, up and down image, left and right image, image patching, LIH (last image freeze)
Structure and performance	Direction wheel and main wheel	Direction wheel can rotate in any direction, and main wheel can rotate in ±90°.

	C-arm	The up and down electrical stroke of pillar is 400mm. Forward and backward movement:200mm; Revolution around horizontal axis : ±180°; Revolution around vertical axis: ±15°, Slipping on orbit : 120°(+90°~-30°) SID: 960 mm; C-arm open distance: 760mm C-arm arc depth: 640mm;



	Plate holder size	200mmx250mm(8”x10”) or 250mmx300mm(10”x12”)
