Dynamic Acquisition (Stress Test System)
Functions and Features of ECG Analysis Software
1. Brand-new operation interface and operation mode; Matched with the operating system: Windows 2000、Windows XP、Windows Vista、Windows 7
2. Dual function System: Static acquisition (PC ECG Workstation) and Dynamic acquisition (Stress test system)
3. Stress Test System Module
*Personalized man-machine dialogue interface;
*Convenient and simple files management of patients;
*Affluent real-time acquisition interface;
*Record the whole process of HR、ST and the trend chart of blood pressure;
*ST Event, QT testing and result list;
*HRV (short distance two dimension frequency) Analysis;
*The whole process will be recorded, achieve 12 channel synchronous recording;
*Interfere-free applied to assure the based-line stability;
*Optional standard or self-designed test protocol;
*Synchronous display 1channel, 3channel, 6channel or 12 channel ECG;
*Freeze, store and print 12 channel ECG data; Input the blood value at anytime;
*Analyze automatically ST deviation; Supply the ST segment deviation of each lead, and heart rate and blood pressure trend graphic;
*In process of testing, you can view the change of 12 channel ST segment at anytime;
*Connect with dynamic blood pressure and save testing results;
*Create standard electronic report, convenient for network transmission and diagnosis of doctor;
4. PC ECG Workstation Analysis Module
*Information management of case library
*Protocol management of static acquisition
*System settings management
*Signal acquisition of static ECG
*Report review of static ECG strip
*12-lead average complex wave function
*ECG vector analysis function
*Time vector analysis function
*Three-dimensional vector chart
*HRV analysis function
*Heart rate turbulence function
*Report print function
*Frequency domain and time domain analysis of ventricular late potential
*QT divergence analysis function
*High frequency ECG
*Frequency spectrum ECG

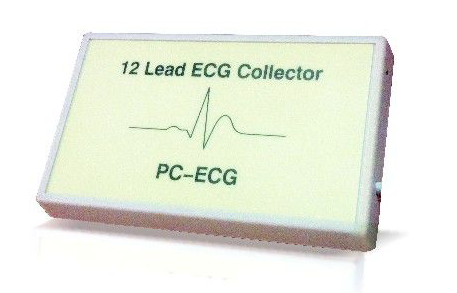

ECG data acquisition module
*Optional Wireless/Wired USB transmission, to ensure the safe and stability of data;
*Frequency response: 0.05-100Hz;
*50Hz restrain ability：≥60dB ;
*Input impedence：＞6M ;
*Mode restrain ratio ：≥90dB;
*Sampling frequency：500Hz；

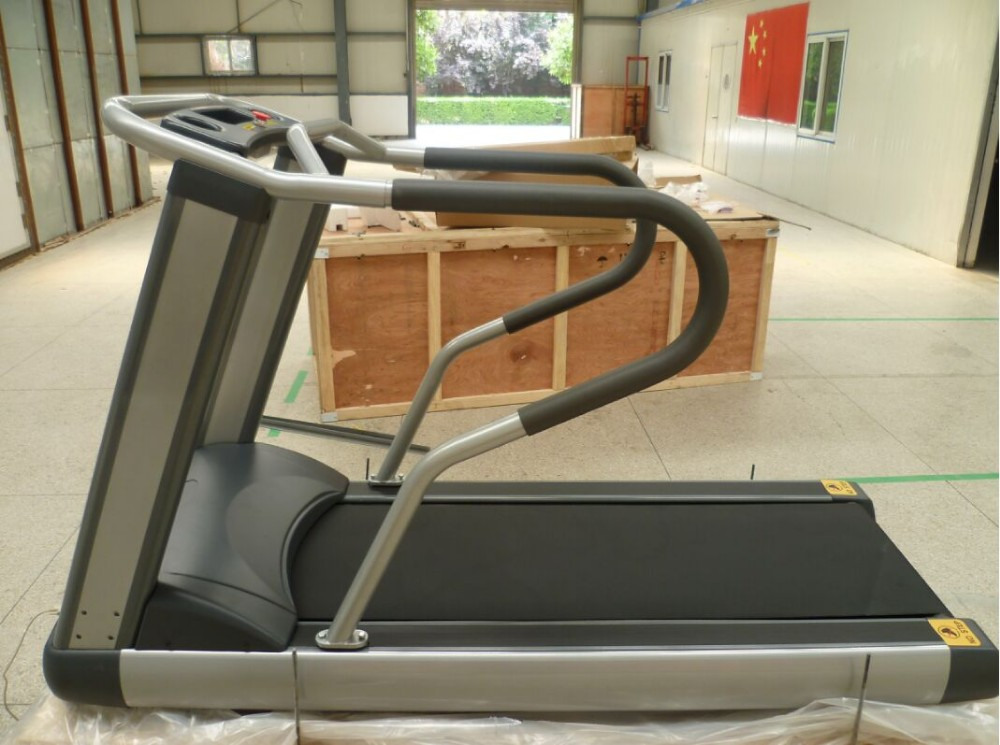

Treadmill features
*Transmission mode: optional wireless/wired (USB);
*Toshiba frequency converter (Accurately control the height and speed of treadmill, provide big torque and increase payload);
*Large self-correcting and self-tensioning running belt;
*Infrared can control double helix elevating system controlled by infrared ray;
*Brushless noiseless AC variable frequency motor, strong driving force and low noise;
*Treadmill dimensions：215 cm×80 cm×130 cm;
*Running belt dimensions：330 cm×53 cm;
*Treadmill weight：160kg;
*Maximum load：160kg;
*Power supply：220±5% V(AC);
*Power frequency：50Hz/60Hz;
*Maximum power：1650W;
*Range of speed：0.1-15KM/H;
*Range of grade：0-25%;
*Accuracy of regulation：0.2%;
*Comply with ETL, CSA、CE and EC-501 international standard System Characteristic.
Options
Exercise blood pressure monitor Tango M2, Made in USA
Exercise Cardiopulmonary function test system (MasterScreen CPX), Germany JAEGER brand
Standard Accessories
1. Software & User manual CD 1 pcs
2. Wooden packing box 1 pcs
3. Waistband 1 pcs
4. Cover of ECG Collector 1 pcs
5. PCI-serial port（RS232) card 1 pcs
6. HP Laser Printer 1 pcs
7. Commerial Lenovo PC 1 pcs
8. ECG Collector 1 pcs
10. Treadmill M2100 (Made in China) 1 pcs
11. Treadmill control cable 1 pcs
12. ECG data extension cable and power cable 1 pcs
13. Ground wire 1 pcs
14. 12-lead ECG patient cable 1 pcs
15. Packing box 1 pcs
