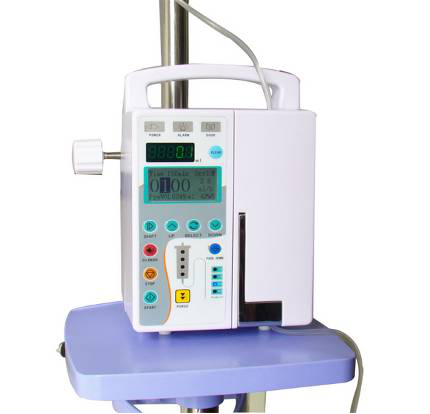

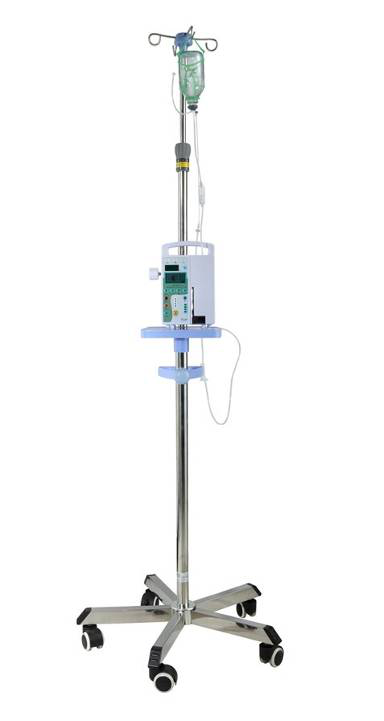

CN-P300 Infusion Pump

FEATURES
1.Bubble detector, drop sensor and pressure sensor can precisely detect tube air bubbles.
2.Unique Voice Alarm system and accurate injection rate make the injection process safer and more reliable.
3.HD LCD display working status.
4.Have store many brands IV sets, Automatically calibration and compatible with any brand infusion sets.
5.Work mode: ml/h and drop/min, and these two modes can switch freely.
6.KVO and Bolus functions.

FEATURES

1.Bubble detector, drop sensor and pressure sensor can precisely detect tube air bubbles.

2.Unique Voice Alarm system and accurate injection rate make the injection process safer and more reliable.

3.HD LCD display working status.

4.Have store many brands IV sets, Automatically calibration and compatible with any brand infusion sets.

5.Work mode: ml/h and drop/min, and these two modes can switch freely.

6.KVO and Bolus functions.

SPECIFICATION

Product name	CN-P300
Unique Voice Alarm system	The device triggered the voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable.
Infusion rate	1ml/h~1,200ml/h
Purge rate	100ml/h~1,200ml/h (100 ml/h increment)
KVO rate	1ml/h~5 ml/h (1ml/h increment)
Accuracy	Within ±5% (after correct calibration)
Infusion Volume	1ml~9999ml
Total Infusion Volume	0.1ml~9999.9ml
Occlusion detection pressure	High: 800±200 mmHg (106.7±26.7 kPa) Medium: 500±100 mmHg (66.7±13.3 kPa) Low: 300±100 mmHg (40.7±13.3 kPa)
Bubble detector	Ultrasonic wave detector; detection sensitivity ≥25μL
Alarms	End of injection, occlusion, door open, bubbles in the tube, wrong setting, low battery, AC power pulled out etc.
Power	AC100V~240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
Operation conditions	Ambient temperature: +5°C~+40°C; Relative humidity: 20~90% Atmospheric pressure: 86.0kpa~106.0kpa
Storage conditions	Ambient temperature: -30°C~+55°C Relative humidity: ≤95%
Equipment Classification	Class II, internal power supply, Type BF
IP grade	IPX1
Dimension	140mm (L) × 157mm (W) × 220mm (H)
Weight	1.8kg (net weight)
