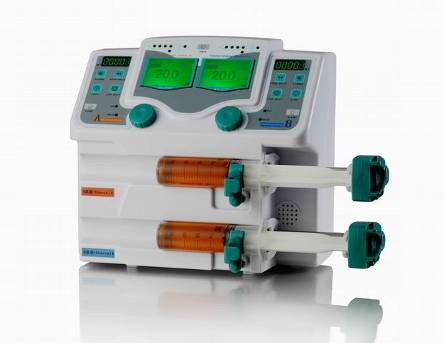

CN-P920 Double Syringe Pump

FEATURES
1.Three working modes: rate mode, time-volume mode, dosage-weight mode.
2.Unique Human Voice Alarm system and accurate injection rate make the injection process safer and more reliable.
3.Have store many brands syringes, Automatically calibration and compatible with any brand syringes.
4.Large LCD screen displays working status.
5.KVO and Bolus functions.
6.Two channels can work independently or together.

FEATURES

1.Three working modes: rate mode, time-volume mode, dosage-weight mode.

2.Unique Human Voice Alarm system and accurate injection rate make the injection process safer and more reliable.

3.Have store many brands syringes, Automatically calibration and compatible with any brand syringes.

4.Large LCD screen displays working status.

5.KVO and Bolus functions.

6.Two channels can work independently or together.

SPECIFICATION

Product name	Double Channel syringe pump CN-P920
Flow rate	50ml syringe:0.1~1500ml/h; 30ml syringe:0.1~900.0ml/h; 20ml syringe:0.1~600.0ml/h; 10ml syringe:0.1~300.0ml/h
The range of limiting volume	0~999.9ml
The range of injected volume	0~9999.9ml
Accuracy of flow rate	Within ±3%(Choose the syringe of specified manufacturer correctly. This accuracy of flow rate is not including the errors of syringe itself.)
Purge rate	Purge rate of 50ml syringe:1500ml/h; Purge rate of 30ml syringe:900.0ml/h; Purge rate of 20ml syringe:600.0ml/h; Purge rate of 10ml syringe:300.0ml/h
Alarm and warms	The pump can give out alarming when injection soon finish, injection finishing, injection of limited amount finished, injection is blocked, syringe falls off, syringe is improperly installed, setting error, AC power has been pulled out, low battery and so on.
Injection blocked	Choose in the three kinds of occlusion alarm pressure according to the clinical requirements(High,Medium,Low)
KVO rate	1ml/h
Fuse specification	F1AL/250V ,two fuses(installed inside pump)
Operating power	AC100~240.0V, 50/60Hz, Power:≤30VA Internal rechargeable battery: DC 11.1V,capacity≥1600mAh. The device could work constantly more than 4 hour at medium speed running mode, after the battery charged for 10 hours.
Operating environment	temperature:+5~+40°C, relative humidity:20~90%
Storing environment	temperature:-30°C~+55, relative humidity:≤95%, ( No condensation state )
Atmospheric pressure	860hPa~1060hPa
Safety level	Class II with insulated enclosure, internal power supply, BF-type continuous normal running equipment.
IP grade	IPX1
Dimensions	280(L)×210(W)×255(H)(mm)
Weight	3.6kg
Accessories	Power line, operating manual, warranty card, product certification.
