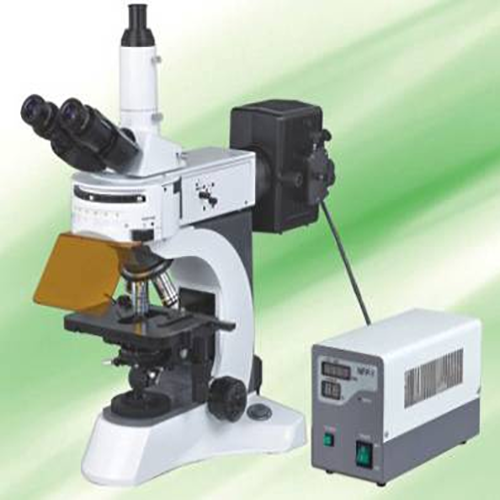

CN-N-800F Fluorescence Microscope

Optical System: lnfinite Optical System
Viewing Head: Compensation Free trinocular Head, lnclined at 300,3600Ratatable,lnterpupilary Distance 48-75mm
Eyepiece: Extra Wide Field Eyepiece WF10X/22
Nosepiece: lnverse Quintuple Nosepiece
Objective: lnfinite plan achromatic objective 4x,10x,40x,100x
Condenser: Swing condenser N.A.0.9/0.25
Focusing: Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm
Stage: Double Layers Mechanical Stage 185x142mm, Moving Range 75x55mm
kohler lllumination: External lllumination, Halongen Lamp 12v30w


Combined epi-fluorscent attachment with N-800M Laboratory Biological Microscope,it becomes N-800F Fluorescence Microscope. It is suited for fluorescent microscopy and widely used in venereal disease examination and immuneless diagnosis.



Specification

Optical System: lnfinite Optical System

Viewing Head: Compensation Free trinocular Head, lnclined at 300,3600Ratatable,lnterpupilary Distance 48-75mm

Eyepiece: Extra Wide Field Eyepiece WF10X/22

Nosepiece: lnverse Quintuple Nosepiece

Objective: lnfinite plan achromatic objective 4x,10x,40x,100x

Condenser: Swing condenser N.A.0.9/0.25

Focusing: Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm

Stage: Double Layers Mechanical Stage 185x142mm, Moving Range 75x55mm

kohler lllumination: External lllumination, Halongen Lamp 12v30w

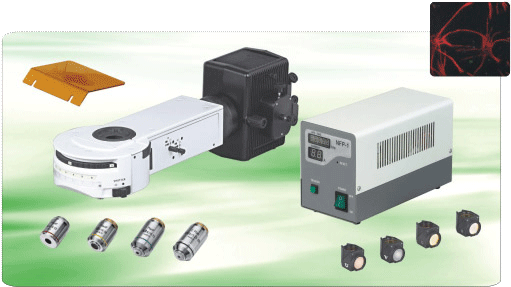

Epi-fluorescent Attachment

Reflected Light Source: Blue excitation(Excitation BP460490, Dichroic Mirror  DM500, Barrier Filter BA520), Green excitation(Excitation BP510550, Dichroic Mirror DM570, Barrier Filter BA590)

Lamp: 100W HBO Ultra Hi-voltage Spherical Mercury Lamp

Protection Barrier: Barrier to Resist the Ultraviolet Light

Power Supply: Power Supplier NFP-1,220V/110V interchangeable,Digital Display

Immersion Oil: Fluorescence Free Oil
