ELECTRIC HEATING CONSTANT TEMPERATURE INCUBATOR

20L Electric Heating Constant Temperature Incubator DHP-9022

Chamber size: 315*255*315（mm）/20L

Temperature range: RT+5～65℃

Temperature fluctuation: ±0.5℃

Temperature resolution: 0.1℃

Operating ambient temperature: +5~35℃

Temperature controller: Integrated EMC product design and user-friendly menu design, using the company's proprietary adaptive control techniques for temperature control, making the device operation is completely fool, to solve the PID control technology requires multiple parameter tuning, the temperature overshoot and other ills, temperature control with excellent results. Dual high brightness digital display wide window, indicating value is clear and intuitive. Microcomputer intelligent control, after setting temperature, meter self-control heating power, and display the status of heating, precise temperature control and stability. Over-temperature alarm and automatically cut off the heating power. There are timing function, timing time up to 9999 minutes.

Main executive appliances:  “LG”AC contactor

Liner material: Chambers for the international universal SUS304 # stainless steel plate, rounded shape, smooth and smooth, easy to clean

Canning material: Box of high quality cold-rolled steel, surface electrostatic spray, coating hard solid, with a strong anti-rust capability

Insulating layer: Pioneered high-performance insulation. From inside to outside the cavity the inner shell, ultra-fine glass fiber, aluminum reflective aluminum foil, air mezzanine, interior heat loss. Carton and doors gall bladder unique institution, greatly reducing the cavity heat outbound.

BOX internal structure: Electric heater placed in the back of the cabinet discharge heat through the side duct forward, after being dried and then suction from the back of the high-performance dedicated fan to form a reasonable duct, enabling hot air full of convection to keep the inner box temperature maximum limits to achieve uniform

Sensor: Class A PT100 platinum resistance

Air flue: Forced circulation air duct to ensure Chamber temperature uniformity; duct mounted heaters, refrigeration, temperature sensor

Heating method: Nichrome heater

Safety device: With over-temperature, grounding protection

Shelf: Shelf 2pcs, removable shelf

Timing range: 1~9999 minutes

Power supply：220V 50HZ

Power：About 210W

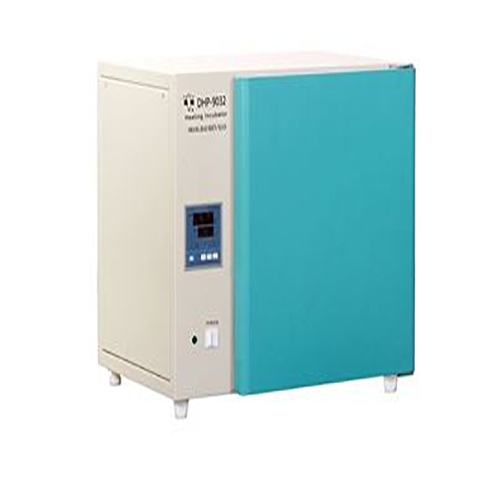

30L Electric Heating Constant Temperature Incubator DHP-9032

Chamber size: 320*300*315（mm）/30L

Temperature range: RT+5～65℃

Temperature fluctuation: ±0.5℃

Temperature resolution: 0.1℃

Operating ambient temperature: +5~35℃

Temperature controller: Integrated EMC product design and user-friendly menu design, using the company's proprietary adaptive control techniques for temperature control, making the device operation is completely fool, to solve the PID control technology requires multiple parameter tuning, the temperature overshoot and other ills, temperature control with excellent results. Dual high brightness digital display wide window, indicating value is clear and intuitive. Microcomputer intelligent control, after setting temperature, meter self-control heating power, and display the status of heating, precise temperature control and stability. Over-temperature alarm and automatically cut off the heating power. There are timing function, timing time up to 9999 minutes.

Main executive appliances:  “LG”AC contactor

Liner material: Chambers for the international universal SUS304 # stainless steel plate, rounded shape, smooth and smooth, easy to clean

Canning material: Box of high quality cold-rolled steel, surface electrostatic spray, coating hard solid, with a strong anti-rust capability

Insulating layer: Pioneered high-performance insulation. From inside to outside the cavity the inner shell, ultra-fine glass fiber, aluminum reflective aluminum foil, air mezzanine, interior heat loss. Carton and doors gall bladder unique institution, greatly reducing the cavity heat outbound.

BOX internal structure: Electric heater placed in the back of the cabinet discharge heat through the side duct forward, after being dried and then suction from the back of the high-performance dedicated fan to form a reasonable duct, enabling hot air full of convection to keep the inner box temperature maximum limits to achieve uniform

Sensor: Class A PT100 platinum resistance

Air flue: Forced circulation air duct to ensure Chamber temperature uniformity; duct mounted heaters, refrigeration, temperature sensor

Heating method: Nichrome heater

Safety device: With over-temperature, grounding protection

Shelf: Shelf 2pcs, removable shelf

Timing range: 1~9999 minutes

Power supply：220V 50HZ

Power：About 200W

50L Electric Heating Constant Temperature Incubator DHP-9052

Chamber size: 350*350*410（mm）/50L

Appearance size：500*520*710

Temperature range: RT+5～65℃

Temperature fluctuation: ±0.5℃

Temperature resolution: 0.1℃

Operating ambient temperature: +5~35℃

Temperature controller: Integrated EMC product design and user-friendly menu design, using the company's proprietary adaptive control techniques for temperature control, making the device operation is completely fool, to solve the PID control technology requires multiple parameter tuning, the temperature overshoot and other ills, temperature control with excellent results. Dual high brightness digital display wide window, indicating value is clear and intuitive. Microcomputer intelligent control, after setting temperature, meter self-control heating power, and display the status of heating, precise temperature control and stability. Over-temperature alarm and automatically cut off the heating power. There are timing function, timing time up to 9999 minutes.

Main executive appliances:  “LG”AC contactor

Liner material: Chambers for the international universal SUS304 # stainless steel plate, rounded shape, smooth and smooth, easy to clean

Canning material: Box of high quality cold-rolled steel, surface electrostatic spray, coating hard solid, with a strong anti-rust capability

Insulating layer: Pioneered high-performance insulation. From inside to outside the cavity the inner shell, ultra-fine glass fiber, aluminum reflective aluminum foil, air mezzanine, interior heat loss. Carton and doors gall bladder unique institution, greatly reducing the cavity heat outbound.

BOX internal structure: Electric heater placed in the back of the cabinet discharge heat through the side duct forward, after being dried and then suction from the back of the high-performance dedicated fan to form a reasonable duct, enabling hot air full of convection to keep the inner box temperature maximum limits to achieve uniform

Sensor: Class A PT100 platinum resistance

Air flue: Forced circulation air duct to ensure Chamber temperature uniformity; duct mounted heaters, refrigeration, temperature sensor

Heating method: Nichrome heater

Safety device: With over-temperature, grounding protection

Shelf: Shelf 2pcs, removable shelf

Timing range: 1~9999 minutes

Power supply：220V 50HZ

Power：About 210W

80L Electric Heating Constant Temperature Incubator DHP-9082

Chamber size: 400*400*500（mm）/80L

Appearance size：570*580*820

Temperature range: RT+5～65℃

Temperature fluctuation: ±0.5℃

Temperature resolution: 0.1℃

Operating ambient temperature: +5~35℃

Temperature controller: Integrated EMC product design and user-friendly menu design, using the company's proprietary adaptive control techniques for temperature control, making the device operation is completely fool, to solve the PID control technology requires multiple parameter tuning, the temperature overshoot and other ills, temperature control with excellent results. Dual high brightness digital display wide window, indicating value is clear and intuitive. Microcomputer intelligent control, after setting temperature, meter self-control heating power, and display the status of heating, precise temperature control and stability. Over-temperature alarm and automatically cut off the heating power. There are timing function, timing time up to 9999 minutes.

Main executive appliances:  “LG”AC contactor

Liner material: Chambers for the international universal SUS304 # stainless steel plate, rounded shape, smooth and smooth, easy to clean

Canning material: Box of high quality cold-rolled steel, surface electrostatic spray, coating hard solid, with a strong anti-rust capability

Insulating layer: Pioneered high-performance insulation. From inside to outside the cavity the inner shell, ultra-fine glass fiber, aluminum reflective aluminum foil, air mezzanine, interior heat loss. Carton and doors gall bladder unique institution, greatly reducing the cavity heat outbound.

BOX internal structure: Electric heater placed in the back of the cabinet discharge heat through the side duct forward, after being dried and then suction from the back of the high-performance dedicated fan to form a reasonable duct, enabling hot air full of convection to keep the inner box temperature maximum limits to achieve uniform

Sensor: Class A PT100 platinum resistance

Air flue: Forced circulation air duct to ensure Chamber temperature uniformity; duct mounted heaters, refrigeration, temperature sensor

Heating method: Nichrome heater

Safety device: With over-temperature, grounding protection

Shelf: Shelf 2pcs, removable shelf

Timing range: 1~9999 minutes

Power supply：220V 50HZ

Power：About 280W

160L Electric Heating Constant Temperature Incubator DHP-9162

Chamber size: 500*500*650（mm）/160L

Appearance size：660*680*950

Temperature range: RT+5～65℃

Temperature fluctuation: ±0.5℃

Temperature resolution: 0.1℃

Operating ambient temperature: +5~35℃

Temperature controller: Integrated EMC product design and user-friendly menu design, using the company's proprietary adaptive control techniques for temperature control, making the device operation is completely fool, to solve the PID control technology requires multiple parameter tuning, the temperature overshoot and other ills, temperature control with excellent results. Dual high brightness digital display wide window, indicating value is clear and intuitive. Microcomputer intelligent control, after setting temperature, meter self-control heating power, and display the status of heating, precise temperature control and stability. Over-temperature alarm and automatically cut off the heating power. There are timing function, timing time up to 9999 minutes.

Main executive appliances:  “LG”AC contactor

Liner material: Chambers for the international universal SUS304 # stainless steel plate, rounded shape, smooth and smooth, easy to clean

Canning material: Box of high quality cold-rolled steel, surface electrostatic spray, coating hard solid, with a strong anti-rust capability

Insulating layer: Pioneered high-performance insulation. From inside to outside the cavity the inner shell, ultra-fine glass fiber, aluminum reflective aluminum foil, air mezzanine, interior heat loss. Carton and doors gall bladder unique institution, greatly reducing the cavity heat outbound.

BOX internal structure: Electric heater placed in the back of the cabinet discharge heat through the side duct forward, after being dried and then suction from the back of the high-performance dedicated fan to form a reasonable duct, enabling hot air full of convection to keep the inner box temperature maximum limits to achieve uniform

Sensor: Class A PT100 platinum resistance

Air flue: Forced circulation air duct to ensure Chamber temperature uniformity; duct mounted heaters, refrigeration, temperature sensor

Heating method: Nichrome heater

Safety device: With over-temperature, grounding protection

Shelf: Shelf 2pcs, removable shelf

Timing range: 1~9999 minutes

Power supply：220V 50HZ

Power：About 380W

270L Electric Heating Constant Temperature Incubator DHP-9272

Chamber size: 600*600*750（mm）/270L

Appearance size：775*785*1100

Temperature range: RT+5～65℃

Temperature fluctuation: ±0.5℃

Temperature resolution: 0.1℃

Operating ambient temperature: +5~35℃

Temperature controller: Integrated EMC product design and user-friendly menu design, using the company's proprietary adaptive control techniques for temperature control, making the device operation is completely fool, to solve the PID control technology requires multiple parameter tuning, the temperature overshoot and other ills, temperature control with excellent results. Dual high brightness digital display wide window, indicating value is clear and intuitive. Microcomputer intelligent control, after setting temperature, meter self-control heating power, and display the status of heating, precise temperature control and stability. Over-temperature alarm and automatically cut off the heating power. There are timing function, timing time up to 9999 minutes.

Main executive appliances:  “LG”AC contactor

Liner material: Chambers for the international universal SUS304 # stainless steel plate, rounded shape, smooth and smooth, easy to clean

Canning material: Box of high quality cold-rolled steel, surface electrostatic spray, coating hard solid, with a strong anti-rust capability

Insulating layer: Pioneered high-performance insulation. From inside to outside the cavity the inner shell, ultra-fine glass fiber, aluminum reflective aluminum foil, air mezzanine, interior heat loss. Carton and doors gall bladder unique institution, greatly reducing the cavity heat outbound.

BOX internal structure: Electric heater placed in the back of the cabinet discharge heat through the side duct forward, after being dried and then suction from the back of the high-performance dedicated fan to form a reasonable duct, enabling hot air full of convection to keep the inner box temperature maximum limits to achieve uniform
