MOULD INCUBATOR

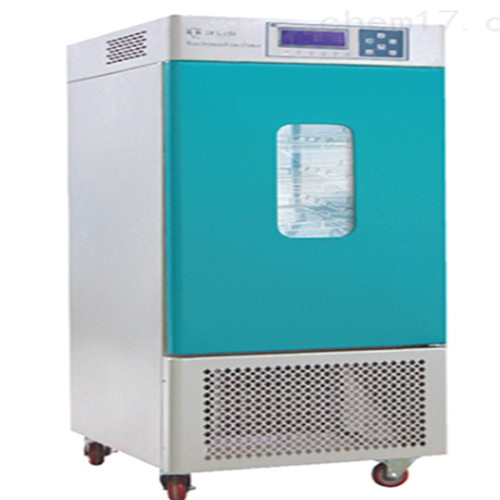

150L Mould Incubator MJX-150

Chamber size: 500*370*800（mm）/150L

Appearance size：660*620*1465（mm）

Temperature range: 4～60℃

Temperature fluctuation: ±0.5℃

Temperature resolution: 0.1℃

Operating ambient temperature: +4~35℃

Temperature controller: Programmable digital micro computer controller, product use the integrated EMC design and user-friendly menu design, using the company's proprietary adaptive control techniques for temperature control, making the device operation is completely simplistic, solve the PID control technology of multiple parameter tuning, temperature overshoot and other ills, temperature control with excellent results. Microcomputer intelligent control, after setting the temperature, the meter self-control the heating power, and display the status of heating, temperature control will be accurate and stable. Over-temperature alarm and automatically cut off the heating power.

Main executive appliances:  “LG”AC contactor

Liner material: Chambers for the international universal SUS304 # stainless steel plate, rounded shape, smooth and smooth, easy to clean

Canning material: Box of high quality cold-rolled steel, surface electrostatic spray, coating hard solid, with a strong anti-rust capability

Sensor: Class A PT100 platinum resistance

Air flue: Forced circulation air duct to ensure Chamber temperature uniformity; duct mounted heaters, refrigeration, temperature sensor

Inspection window: Double glass door observation window, lights mounted in the box, easy to observe

Heating method: Nichrome heater

Safety device: With over-temperature, grounding protection

Shelf: Shelf 3pcs, removable shelf

Timing range: 1~9999 minutes

Power supply：220V 50HZ

Power：About 520W

250L Mould Incubator MJX-250

Chamber size: 550*445*1100（mm）/250L

Appearance size：650*695*1752（mm）

Temperature range: 4～60℃

Temperature fluctuation: ±0.5℃

Temperature resolution: 0.1℃

Operating ambient temperature: +4~35℃

Temperature controller: Programmable digital micro computer controller, product use the integrated EMC design and user-friendly menu design, using the company's proprietary adaptive control techniques for temperature control, making the device operation is completely simplistic, solve the PID control technology of multiple parameter tuning, temperature overshoot and other ills, temperature control with excellent results. Microcomputer intelligent control, after setting the temperature, the meter self-control the heating power, and display the status of heating, temperature control will be accurate and stable. Over-temperature alarm and automatically cut off the heating power.

Main executive appliances:  “LG”AC contactor

Liner material: Chambers for the international universal SUS304 # stainless steel plate, rounded shape, smooth and smooth, easy to clean

Canning material: Box of high quality cold-rolled steel, surface electrostatic spray, coating hard solid, with a strong anti-rust capability

Sensor: Class A PT100 platinum resistance

Air flue: Forced circulation air duct to ensure Chamber temperature uniformity; duct mounted heaters, refrigeration, temperature sensor

Inspection window: Double glass door observation window, lights mounted in the box, easy to observe

Heating method: Nichrome heater

Safety device: With over-temperature, grounding protection

Shelf: Shelf 3pcs, removable shelf

Timing range: 1~9999 minutes

Power supply：220V 50HZ

Power：About 680W
