CN-B910 E.N.T. Treatment Unit

Feature
Powerful and stable negative pressure suction system
Stable air compressor system with no leakage during spraying
Indirect laryngoscope system with 3-seconds rapid warm-up
Poly spot lighting inspection lamp, long-life light bulb, close to natural light, by focusing to form liquid atomization function: improve the treatment effect
Air blowing function: make Eustachian tube ventilate
Hot wind heating to demist: Adopt delayed automatic shutdown function, easy to operate
Suction function: Convenient to handle

Feature

Powerful and stable negative pressure suction system

Stable air compressor system with no leakage during spraying

Indirect laryngoscope system with 3-seconds rapid warm-up

Poly spot lighting inspection lamp, long-life light bulb, close to natural light, by focusing to form liquid atomization function: improve the treatment effect

Air blowing function: make Eustachian tube ventilate

Hot wind heating to demist: Adopt delayed automatic shutdown function, easy to operate

Suction function: Convenient to handle



Standard Configuration

Positive pressure pump (mute)       1set

Negative pressure pump (mute)       1set

Suction bottle 1000ml  1 set

Suction bottle 2500ml  1 set

Low voltage control circuit  1 set

Radiation-less poly spot lamp  1 set

Spray gun   3 sets

Suction gun 1 set

30ml phial 6 set

Instruments box with cover   2 set

80mm diameter ointment cylinder   2 set

120mm diameter collection cylinder   2 set

Air-blowing device 1 set



Options

Cold light source  Illuminance 1600000Lux

Camera system    CCD horizontal resolution 420TV lines

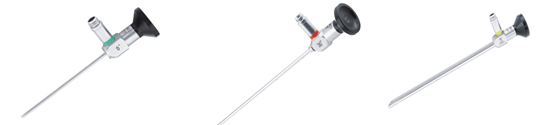

Otoscope          0°

Rhinoscope        0°  30°

Laryngoscope      70°  90°

Instrument carriage
























Specifications

Basic information

Single station design and simple operation, and support parallel operations (check and treatment)
ABS surface (abrasion resistance, corrosion resistance, easy to clean)
Composite paint box (durable structure, elegant appearance)  Host noise  62dB (A)

Compressor· Vacuum pump

Use: high power and ultra quiet

Instrument tray

Can place: monitor, cold light source, camera.

Spray

Spray gun works immediately once lifted. Spray gun liquor bottle can fill different medical liquid for the treatment of stuffy nose, nasal mucosa, nasal bleeding, sore throat, surgical anesthesia, etc.
The spray gun pressure is equal or greater than 0.1MPa under Standard conditions. The maximum value shall not exceed 0.15MPa. The precision of pressure gauge is ±0.01MPa.

Sucking

To remove nasal membrane secretion - wound clot - pus liquid, etc. Dirt suction pressure value is the range of -0.02MPa~-0.07MPa under the standard environment. The precision of the pressure gauge is ±0.002MPa.
Dirt bottle shall not burst under extreme pressure -0.07MPa. The length of suction hose shall exceed 1000mm.

Demisting

Heat the mirror of indirect laryngoscopy and Nasopharyngoscopy to fit mirror temperature with the human body temperature and to prevent mist during nose and throat check up.

Lighting

Lighting source with spotlight illumination output  520LX.  Lamp power supply: DC12V

European tube

Gas treatment for throat.
The maximum stress release shall not exceed 0.15MPa.
