CN-TGL16M High Speed Refrigerated Centrifuge

FEATURES
Advanced technology, superior performance
Microprocessor-controlled,inverter moror driven,rotor automatic identification system,programmable RCF and speed even when it is running always able to check the speed and RCF,two circuits for fast refrigeration and fast heating,perfect for platelet separation and radioimmunological separation.cooling, heating speed, to meet the platelet separation temperature,wide power supply, to meet the different users Requirements
French imports of CFC-free compressor with (refrigerant R314a), to meet the environmental requirements
Simple the best
Intelligent interface, touch panel, digital display, the program can be compiled, can be kept, it is desirable landing speed of 10 files, centrifugation to achieve the best.
A variety of safe and reliable protection
With speeding, over-temperature, unbalanced, over current, over voltage and other protection, and there are 10 self-diagnostic protection, to ensure personal and equipment safety, ensure the safety of stainless steel cavity, three-tier security steel sleeve, electro-mechanical door lock linkage, safe and reliable.


FEATURES

Advanced technology, superior performance

Microprocessor-controlled,inverter moror drivenrotor automatic identification systemprogrammable RCF and speed even when it is running always able to check the speed and RCFtwo circuits for fast refrigeration and fast heating,perfect for platelet separation and radioimmunological separation.cooling, heating speed, to meet the platelet separation temperature,wide power supply, to meet the different users Requirements
French imports of CFC-free compressor with (refrigerant R314a), to meet the environmental requirements
Simple the best
Intelligent interface, touch panel, digital display, the program can be compiled, can be kept, it is desirable landing speed of 10 files, centrifugation to achieve the best.
A variety of safe and reliable protection
With speeding, over-temperature, unbalanced, over current, over voltage and other protection, and there are 10 self-diagnostic protection, to ensure personal and equipment safety, ensure the safety of stainless steel cavity, three-tier security steel sleeve, electro-mechanical door lock linkage, safe and reliable.

SPECIFICATION

 Model

TGL-16M

 Max Speed

16000 r/min

Max RCF

17800×g

Angle Rotor Capacity

12×1.5ml(16000r/min RCF17800×g)

Speed Control Accuracy

±50 r/min

Temp Indicating Accuracy

±1

 Temp Range

-20℃~+40

 Noise

≤65dB

Motor

Inverter motor

 Timer Range

09H59min

 Dimensions

880×460×430mm(L×W×H)

 Weight

120Kg

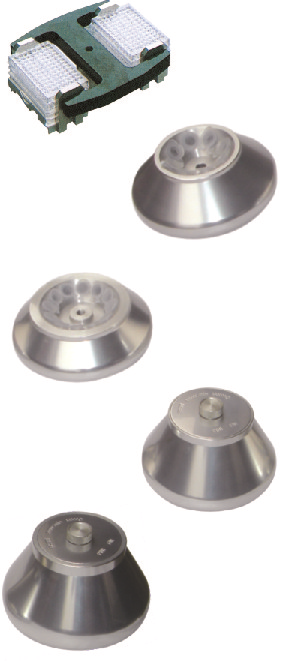

Number

Rotor

Max Speed

Max RCF

Rotor Capacity

No.1

Angle Rotor

16000

17800

12×1.5/2ml

No.2

Angle Rotor

13000

17390

24×1.5/2ml

No.3

Angle Rotor

13000

12850

8×5ml

No.4

Angle Rotor

13000

13700

12×10ml

No.5

Angle Rotor

13000

17390

48×0.5ml

No.6

Angle Rotor

13000

11400

10×5ml
