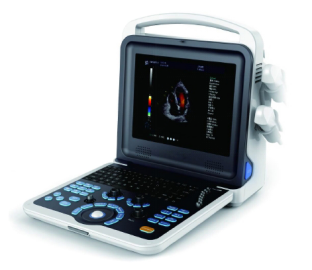

4D Real Time Portable Type Color Doppler CN-iM9

With12' high-resolution LED monitor, built in Li-ion battery, delicate appearance, exquisite image quality and excellent stability, our hand-carried ultrasound diagnostic system serves clients whenever, at any place. 4D Software package & 4D Volume Probe


With12' high-resolution LED monitor, built in Li-ion battery, delicate appearance, exquisite image quality and excellent stability, our hand-carried ultrasound diagnostic system serves clients whenever, at any place. 4D Software package & 4D Volume Probe

1) Imaging Modes

 B, B|B, 4B, B|M, M

Color Doppler (CFM)

 Power Doppler (PDI)

 Pulsed Wave Doppler (PW)

 B+PWD (Duplex)

 B+CFM/PDI+PW (Triplex)



2) Scanning Method

2.png3.pngElectronic linear, electronic convex, electronic micro-convex


































3) Image processing

Brightness, contrast

Advanced gamma control

Scan direction, rotation

Black/white, Left/right reverse

Up/down, negative / positive control

8 segments TGC Control

High Pulse Repetition Frequency (HPRF)

Tissue Harmonic Imaging (THI)

PSHI TM broadband multi-frequency harmonic image

Speckle-reduction

Power adjustable

iBeam TM intelligent space image technology

iZoom TM undistorted full screen image

 iClear

 iTouch

Edge enhancement

Image conversion

Doppler Sound output volume adjustable

Color threshold control

Wall filter adjustable

Base line adjustable

Sampling frame adjustable

Spectrum sampling volume adjustable

Spectrum sampling volume angle adjustable

PRF adjustable

Pseudo
Built-in rechargeable Lithium Battery


Functions

Cine loop: more than100 frame cine loop memory

Storage media: Large image-storage capacity

Zoom: Pan zoom

USB ports: 2



Measurement & Calculations

B mode: Distance, circumference, area, volume, angle

M mode: Distance, time, velocity, heart rate

Software package: Abdomen, gynecology, obstetrics, cardiology, small parts, urology













Probes information

Probe Name

Multi-frequency


Note

 3.5Mhz Abdominal Probe

 2.0, 3.0, 3.5, 4.0, 5.5Mhz


Standard Configuration

4D Volume Probe

 2.0, 3.0, 3.5, 4.0 , 5.5Mhz


Standard Configuration

 6.5Mhz Trans-vaginal Probe

 5.0, 6.0, 6.5, 7.5, 9.0Mhz


Options

 7.5Mhz Linear Probe

 6.0, 6.5, 7.5, 10.0, 12.0Mhz


Options

 3.5Mhz Micro-Convex Probe

 2.0,2.5, 3.5, 4.5 ,5.0Mhz


Options

 3.0Mhz Phased Array Probe

 2.0, 3.0, 3.5, 4.0 , 5.5Mhz


Options
























Standard Configuration

Main Unit, 12 Inch LED Monitor, 4D Software Package & 4DVolume Probe,

3.5Mhz Convex Probe, 2pcs Probe Connectors, Built in Li-Ion Battery



Options

6.5 Mhz Trans-vaginal Probe, 7.5 Mhz Linear Probe, 3.0mhz Micro-Convex Probe, 3.5mhz Phased Array Probe, Trolley, Laser Printer, DICOM 3.0
