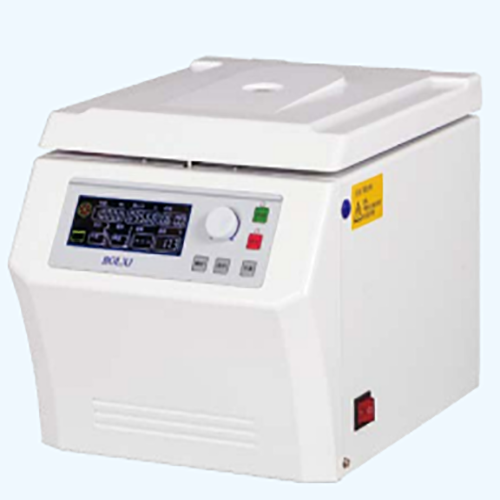

CN-12MX High Speed Centrifuge

△Product features:
*Microcomputer frequency conversion control system, liquid crystal display, with dual display functions of speed and centrifugal force;
* Driven by a high-power AC variable frequency motor, equipped with a high-precision speed measurement system;
*Single knob setting key, convenient and quick parameter setting;
*With a fast program call button, 9 groups of program storage space, 9 gears of acceleration and deceleration control, no reverberation function when stopping;
*Parameters can be changed at any time during operation, no need to stop;
*Single Short spin button for instant centrifugation, press and hold to centrifuge;
*Automatically identify different rotors and carry out speed limit control;
*The rotor is installed with an expandable structure, which is convenient for interchange;
*It has an automatic fault diagnosis system to ensure the safe use of the instrument against multiple protections such as overspeed, imbalance, and electronic door cover.

Specifications

Model

CN-12MX

Maximum Speed

16500r/min

Control Mode

Membrane Switch

Maximum Capacity

5ml×12

Power Supply

AC220V 50HZ

Maximum Relative Centrifugal Force

18420Xg

Input Power

400W

Timing Time

1- 99 min 59s

Drive Mode

AC Variable Frequency Motor

Noise

≤ 60dB (A)

Dimensions      (L *W * H)

28×38×30cm

Speed Accuracy

±20rpm

Net Weight

15KG







Adopting novel appearance design and superior control technology, reliable quality, superior performance, forced air cooling technology, significantly and effectively reduce the temperature rise to ensure that the sample is not damaged, the automatic rotor identification system, the operation is safer and more reliable. It is widely used in centrifugal applications in molecular biology, clinical medicine, genetic biology, protein nucleic acid and PCR experiments.



Product features:

*Microcomputer frequency conversion control system, liquid crystal display, with dual display functions of speed and centrifugal force;

* Driven by a high-power AC variable frequency motor, equipped with a high-precision speed measurement system;

*Single knob setting key, convenient and quick parameter setting;

*With a fast program call button, 9 groups of program storage space, 9 gears of acceleration and deceleration control, no reverberation function when stopping;

*Parameters can be changed at any time during operation, no need to stop;

*Single Short spin button for instant centrifugation, press and hold to centrifuge;

*Automatically identify different rotors and carry out speed limit control;

*The rotor is installed with an expandable structure, which is convenient for interchange;

*It has an automatic fault diagnosis system to ensure the safe use of the instrument against multiple protections such as overspeed, imbalance, and electronic door cover.
















P1 angle rotor

Maximum speed: 16500 (r/min) Maximum centrifugal force: 18420 (Xg)

Rotor capacity: 1.5/2.2ml×12 pieces
















P2 angle rotor

Maximum speed: 13000 (r/min) Maximum centrifugal force: 16170 (Xg)

Rotor capacity: 1.5/2.2ml×24 pieces
















P3 angle rotor

Maximum speed: 12000 (r/min) Maximum centrifugal force: 10142 (Xg) Rotor capacity: 5ml×12 pieces
















P4 capillary rotor

Maximum speed: 12000 (r/min) Maximum centrifugal force: 13500 (Xg)

Rotor capacity: blood capillary tube × 24
