CN-5D / 5D1 / 5D2 Digital Slit Lamp Microscope with Electric Table

Slit lamp Feature
Galilean optical path give a clarity image
Digital camera is capable of 10 mega pixel and plus with background illumination system.
Photos can be taken and transferred to computer by the button of the software or by foots switch.

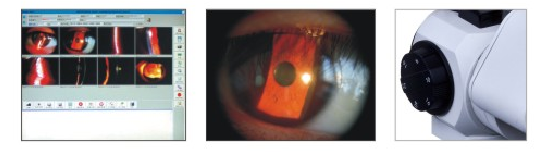

Advanced Software Feature
Images transferred from digital camera to the software immediately and directly
High resolution digital imaging
Easy to operate
Digital capture from multiple sources
Vast online storage
Comprehensive patient data and images
High level of data security
Image processing, such as measurement, note, merge, magnify, bright adjust, color adjust and so on
Video and Real-time display
DICOM export

Digital Upgrade
CN-5D1
With all functions of CN-5D, Add Beam splitter and Camera

CN-5D2
With all functions of CN-5D, Add Beam splitter, Camera, Computer and Software

Advanced Software Feature

Images transferred from digital camera to the software immediately and directly

High resolution digital imaging

Easy to operate

Digital capture from multiple sources

Vast online storage

Comprehensive patient data and images

High level of data security

Image processing, such as measurement, note, merge, magnify, bright adjust, color adjust and so on

Video and Real-time display

DICOM export



Digital Upgrade

CN-5D1

With all functions of CN-5D, Add Beam splitter and Camera



CN-5D2

With all functions of CN-5D, Add Beam splitter, Camera, Computer and Software


Specification

Microscope Type

Galilean Parallel Stereoscopic Microscope

Eye Piece

12.5×

Magnifications (Field of View)

6×(37-mm), 10×(23-mm), 16×(14-mm), 25×(8.7-mm) ,40×(5.7-mm)

Pupil Distance

55-mm ~ 75-mm

Adjustable Diopter

±5D

Slit Width

0-mm~9-mm adjustable or 0-mm~14-mm adjustable

Slit Height

1-mm~8-mm adjustable or 1-mm~14-mm adjustable

Slit Angle

0°~180° adjustable

Slit Inclination

5°, 10°, 15°, 20°

Diameter of Light Spot

9mm, 8mm, 5mm, 3mm, 2mm, 0.2mm or14mm, 8mm, 5mm, 3mm, 2mm 0.2mm

Filter

Heat absorption, Grey, Red free, Cobalt blue

Illumination Bulb

12V/50W or 12V/30W halogen bulb

Input Voltage(frequency)

AC220V±22V(60HZ±1HZ), AC110V±11V(50HZ±1HZ)

Electrical Safety Standard

Executive standard IEC601-1, Class I, Type B

Whole Packing Volume

0.5 m³

Total Weight

24-kg (table not included), 50-kg (table included)

Optional Accessories

Applanation tonometer, CCD adaptor, Teaching tube,Beam splitter, Camera adaptor, Camera,CCD, Computer,Ink-jek printer
