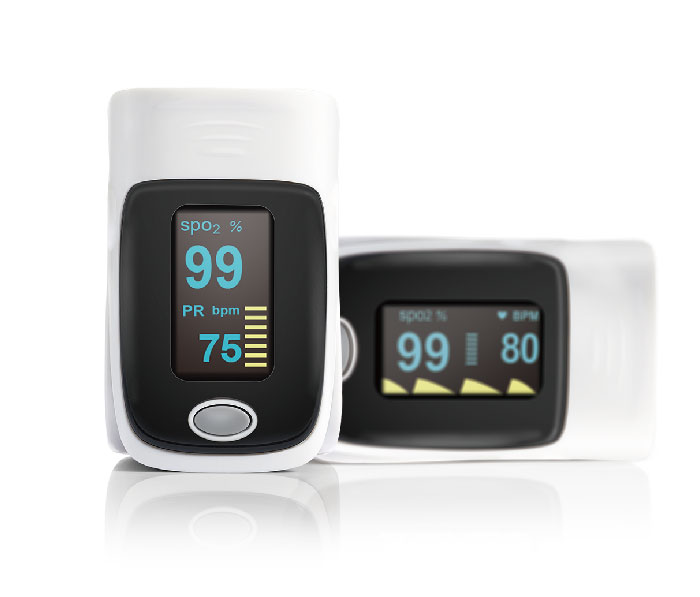

CN-7400 Fingertip Pulse Oximeter

Parameters
Two parameters:SPO2, Pulse Rate.
Waveforms:
SpO2 Waveform

Features

·COLOR OLED display, four direction adjustable

·SpO2 and pulse monitoring, and Waveform display

·Low-power consumption, continuously work for 50 hours

·Small in size, light in weight, and convenient to carry

· Low voltage alarm display, Auto power-off

·Runs on standard AAA batteries



Functions

SPO2:

·Measurement range: 70%-99%

·Accuracy: ±2% on the stage of 70%-99%, unspecified(<70%) for SPO2

·Resolution: ±1%

·Low perfusion: <0.4%



PR:

·Measurement: range:30BPM-240BPM

·Accuracy: ±1BPM or ±1%(the larger one)

·Power: two AAA 1.5V alkaline batteries

·Power consumption: below 30mA

·Automatic power-off: the product shuts down automatically after no signal for 8 seconds

·Dimension: 62mm*32mm*33mm

·Operation environment:

·Operation temperature: 5ºC-40ºC

·storage temperature: -10ºC-40ºC

·Ambient humidity: 15%-80% on operation 10%-80% in storage

·Air pressure: 70kPa-106kPa

·Declaration: EMC of this product comply with IEC60601-1-2standard
