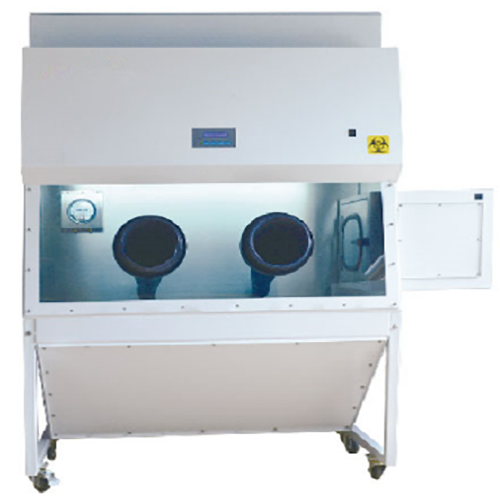

CN-1500IIIX CLASS III BIOSAFETY CABINET

Advantage:
1.UV lamp ensures work area sterilization effectively.
2.An angled cabinet front ensures an ergonomic working posture.
3.Exhaust air is double-filtered through high-quality ULPA filters with typical efficiency of 99.999% for 0.1~0.2μm particles

Advantage:

1.UV lamp ensures work area sterilization effectively.

2.An angled cabinet front ensures an ergonomic working posture.

3.Exhaust air is double-filtered through high-quality ULPA filters with typical efficiency of 99.999% for 0.1~0.2μm particles



Specifications

Model

CN-1500IIIX

External SizeW*D*H

1720*850*2100 mm

Internal SizeW*D*H

1240*650*650 mm

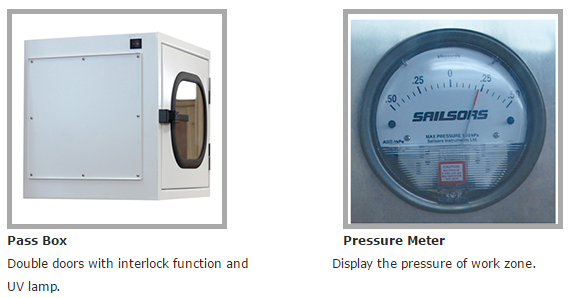

Pass Box SizeW*D*H

Internal Size: 400*390*340 mm

External Size: 480*400*400 mm

Gloves

One pair of 800mm butyl rubber gloves

Front Window

8 mm toughened glass, anti-ultraviolet radiation

Display

LCD display

Pre-filter

Polyester fiber, washable

Pressure

≥ negative120 Pa

ULPA Filter

Air supply filter: Efficiency 99.999% at 0.12μm

First exhaust filter: Efficiency 99.999% at 0.12μm

Second exhaust filter: Efficiency 99.999% at 0.12μm

Noise

NSF 49 ≤61dB/EN 12469≤48dB

Airflow Volume

440-870cfm

Alarm

Audio and visual alarm, abnormal pressure; filter replacement

Work Zone Material

304 stainless steel

Illumination

≥ 1000 lux

Consumption

700W

Fluorescent Lamp

28W*2

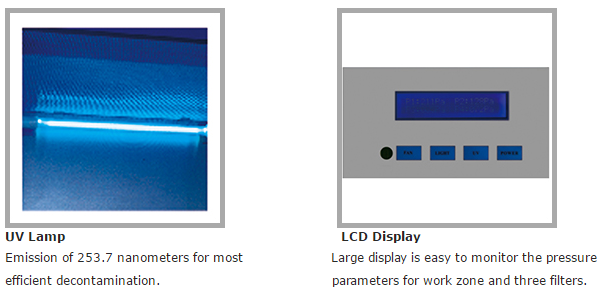

UV Lamp

30W*1, 8W*1, Emission of 253.7 nanometers for most efficient decontamination

Power Supply

AC220V±10% ,50/60 Hz;110V±10%60Hz

Gross Weight

395kg

Package Size(W*D*H)

1850*1080*2280mm

Standard Accessories

Gloves, fluorescent lamp, UV lamp*4, remote control, pressure meter, drain valve



Standard Accessory

Gloves                       1pair

Fluorescent lamp         1pcs

UV lamp                     4pcss

Remote control           1pcs

Pressure meter            1pcs

Drain valve                  1pcs
