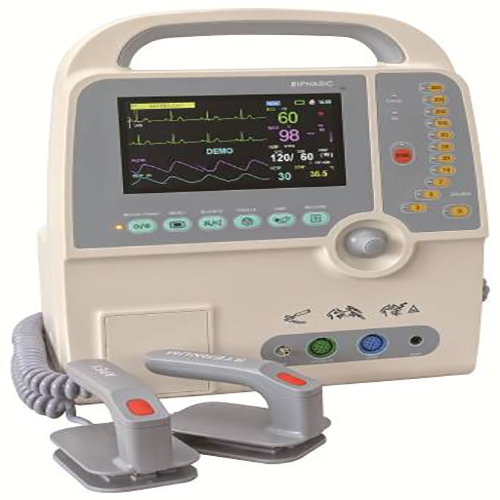

Technical Specifications
Defibrillator
(1) Defibrillator type Manual, Synchronized, Asynchronized,
(2) Out put waveform Biphasic technology
(3) Energy accuracy ∠+1%
(4) Energy selection 0,3,5,7,10,20,30,50,100,200,300,360 joule(nominal at a resistance of 50)
(5) Charging time Maximum 8 seconds to 360 Joules
(6) Standard Adult/Pediatric Paddles Reusable external adult paddles (pediatric paddles integrated)
Technical Specifications
Defibrillator
(1) Defibrillator type Manual, Synchronized, Asynchronized,
(2) Out put waveform Biphasic technology
(3) Energy accuracy ∠+1%
(4) Energy selection 0,3,5,7,10,20,30,50,100,200,300,360 joule(nominal at a resistance of 50)
(5) Charging time Maximum 8 seconds to 360 Joules
(6) Standard Adult/Pediatric Paddles Reusable external adult paddles (pediatric paddles integrated)
Power requirements
(a) AC Power supply 110V, 60 Hz /220V,50 Hz
(b) Vehicle Voltage DC 12V
Internal Battery Backup
(1) Battery type Rechargeable lead-acid battery
(2) Charging time Time-Minimum of 4 hours for full charging
(3) Battery charging During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication Red LED
(5) Battery Capacity 100% of the battery will provide 120 minutes of monitoring; and 30 discharges at 360 joules.
Display
LED Dimensions 7’diagonal {155mm*88mm}
Type High resolution true-color graphic LED
Resolution 480X234
ECG
ECG lead: Ⅰ, Ⅱ, Ⅲ, AVR, AVL, AVF, V1~V6, GND
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: Yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
NIBP
Working mode: Manual/Automatic/stat (5 minutes)
Method: Automatic oscillation
Cuff type: standard Adult; optional Pediatric/Neonatal
Temperature
Measurement range 20~45℃
Resolution 0.1℃
Pulse Oximetry (SPO2)
Display :SPO2 value, pulse histogram, waveform, Pulse
Range: 0~99%for adult, pediatric and neonatal patients
Probe :Standard adult finger clip
Optional pediatric Y-type clip and neonatal wrap
Pulse range
Pulse range: 0-255bpm
Standard Configuration
ECG/ RESP, /SPO2,/TEMP,/PR,/NIBP/DEFIBRILLATOR
Optional Parameter
Built-in Printer
Physical Characteristics
Main unit: Portable
Dimensions: L320xW205xH410 mm
Weight: 9.8kg
