Features

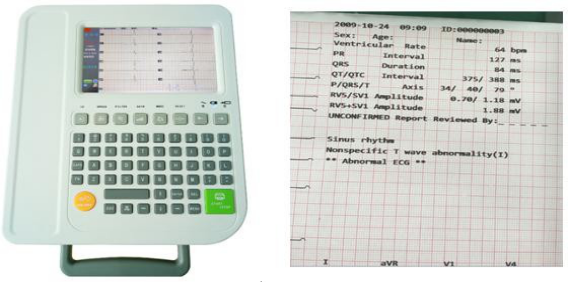

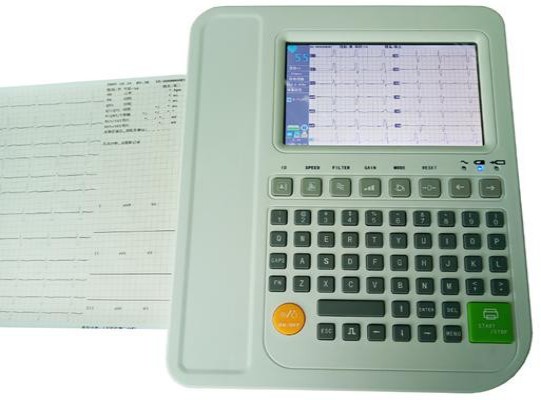

Twelve channel ECG machine with Interpretation 7" color TFT LCD display

Simultaneous 12 leads acquisition and (Manual/Auto) recording with high resolution thermal printer Manual/Auto working modes

Use digital isolation technology and digital signal processing Baseline stabilization inspection

Full alphanumeric silicon keyboard Support U disk storage

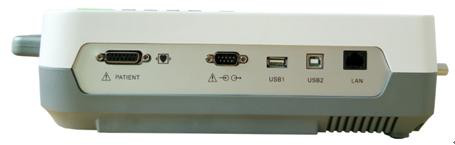

Support USB (Optional)

Specifications

Lead: Standard 12 leads Acquisition: Simultaneous 12 leads A/D Converter: 14bit

Sampling Rate: 1000Hz Working Mode: Manual/Auto

Interference Filter: AC Filter and EMG Filter CMMR: ≥100dB (with AC filter)

Input Circuit: Floating, protection circuit against defibrillator effect Input Circuit Current: ≤0.1μA

Input Impedance: ≥50MΩ

Patient Current Leakage: ＜10μA Calibrating Voltage: 1mV±2％

Skin Voltage Tolerance: ≥±500mV Time Constant: ≥3.2s

Frequency Response: 0.05 Hz～250Hz Noise Level: ＜15μVp-p

Sensitivity Threshold: ≤20μV

Signal Channel Interference: ≤0.5mm Printer: Thermal printer

Paper: 215mmx20m, roll

Page Speed: 6.25, 12.5, 25, 50mm/s (±3％)

Sensitivity Printer: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV

CPU: 32 bits

Safe Class: GB9706.1, Class I, Type CF

Power Supply: AC 220V (±10%), 50Hz±1Hz, Power ≤60VA AC 85～265V, 50/60Hz

DC14.8V (2200mAh), Rechargeable Li-ion battery Dimension: 310mm×220mm×89mm

Weight:3kg (with battery)
