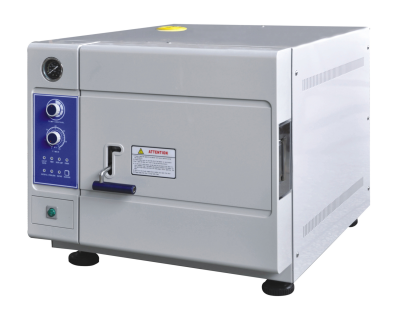

CN-9104 Table Type Steam Sterilizer

Feature
1. Sterilizing course: Automatic sterilization controlled by computer, easy to operate.
2. Maximum temperature: up to 134℃, suit for 4-6 minutes rapidly sterilizing.
3. With steam inner circulate system and not exhaust steam in room, ensure the dry and clean of the circumstance.
4. The sterilizing plate with holes and cover, it can be closed for use when finishing the sterilizing to preventing air pollute.
5. With over-temperature, over-pressure auto-protect device.
6. With auto-exhausting device on chamber cooling air, ensure the results of the sterilization.
7. All the sterilizer body made by stainless steel and can be use for a long time.

Feature

1. Sterilizing course: Automatic sterilization controlled by computer, easy to operate.

2. Maximum temperature: up to 134, suit for 4-6 minutes rapidly sterilizing.

3. With steam inner circulate system and not exhaust steam in room, ensure the dry and clean of the circumstance.

4. The sterilizing plate with holes and cover, it can be closed for use when finishing the sterilizing to preventing air pollute.

5. With over-temperature, over-pressure auto-protect device.

6. With auto-exhausting device on chamber cooling air, ensure the results of the sterilization.

7. All the sterilizer body made by stainless steel and can be use for a long time.



Specification


35L

50L

Sterilizing chamber volume

35L ( Φ300X500mm)

50L ( Φ340X550mm)

Max. working pressure

0.22MPa

Max. working temperature

134

Adjustment of temperature

105~ 134

Timer

0-60min

Chamber temperature equal

≤ ± 1

Power

2.7KW/AC 220V50HzAC110V 50Hz

Sterilizing plate

400×200×30mm (4 piece)

500×250×30mm (4 piece)

Net/Gross Weight

80 / 95 Kg

93 / 110 Kg
