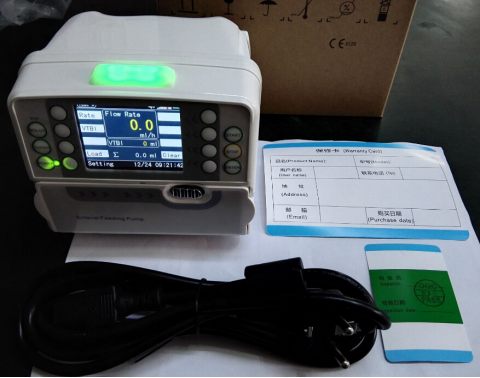

CN-P600 Enteral Feeding Pump

}YML2]4HVR[1Q8EKC045M_H.png $5Z7%9]X{W_G2C})KO[``10L.png$


Specification

Flow rate range	1~400 ml/h
Volume to be infused (VTBI)	0 ~ 9999 ml
Volume Infused (∑)	0 ~36000 ml
Infusion accuracy	±10%
Applicable feeding bag	Support wide variety brands of feeding bag
Bolus rate	400 ml/h
Mode of operation	Continuous
Air bubble detection	Ultrasound sensor detection with four levels of air in line alarm adjustable
Occlusion pressure	3 adjustable occlusion pressure settings: low, middle and high
Alarms	Visual and audible alarms: Door open, Air-In-Line, Occlusion, Infusion completion, infusion near over, Start reminder function, Low Battery, Battery depleted, malfunction etc.
Computer Interface	RS232 (optional)
History records	2000 history records
Power supply	AC:100~240V,50/60Hz DC:12V ±1V
Battery	Rechargeable lithium polymer battery,7.4V,2100mAh Can operate for more than 3 hours after fully charged at 25ml/h.
Battery recharge time	10hs recharging when machine is turned on, 3hs recharging when machine is off.
Power consumption	25VA
Classification	Class I, type CF
Water Proof Level	IP×3
Mode of operation	continuous
Dimensions	145×100×120 mm（Length×Width×Height）
Weight	≤1.4kg
Operating conditions	Temperature:5℃~40℃,relative humidity:10~95%, air pressure:86～106kPa
Transport conditions	Temperature-20℃~+60℃,relative humidity:10~95%, air pressure:50～106kPa
Storage conditions	Temperature-20℃~+45℃,relative humidity:10~95%, air pressure:50～106kPa
