CLASS II B2 BIOSAFETY CABINET

Advantage:
1. Motorized Front Window.
2. Time Reserve Function.
3. HEPA Filter life and UV Life indicator.
4. Automatic air speed adjustable with filter block.
5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
6. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc).
7. Most accessories are standard. No need to pay more, save your money.

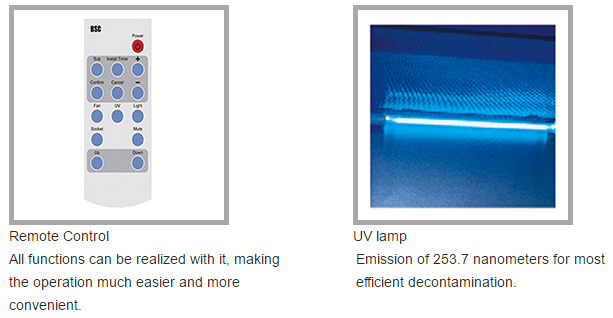

8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.
9. Foot Switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
10. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

Advantage:

1. Motorized Front Window.

2. Time Reserve Function.

3. HEPA Filter life and UV Life indicator.

4. Automatic air speed adjustable with filter block.

5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.

6. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc).

7. Most accessories are standard. No need to pay more, save your money.

8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.

9. Foot Switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.

10. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.




Specifications

Model

CN-1100IIB2-X

CN-1300IIB2-X

CN-1500IIB2-X

CN-1800IIB2-X

Internal Size (W*D*H)

940*600

*660mm

1150*600

*660mm

1350*600

*660mm

1670*600

*660mm

External Size (W*D*H)

1100*750

*2250mm

1300*750

*2250mm

1500*760

*2250mm

1820*750

*2250mm

Tested Opening

 Safety Height ≤200 mm (8")

Max Opening

420 mm (17")

420 mm (17")

500mm (20")

500mm (20")

Inflow Velocity

0.53±0.025 m/s

Downflow Velocity

0.33±0.025 m/s

Pre-Filter

Washable

HEPA Filter

Two,  99.999% efficient at 0.3 um.  Filter life indicator.

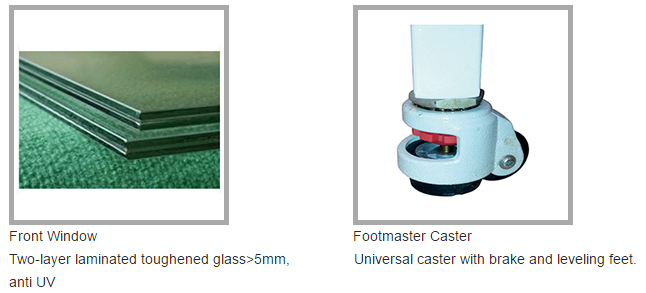

Front Window

Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV

Noise

NSF49≤61dB / EN12469≤58 dB

UV Lamp

30W× 1

18W× 1

40W× 1

40W× 2


UV timer, UV life indicator, emission of 253.7 nanometers

for most efficient decontamination.

Fluorescent Lamp

21W× 2

21W× 2

28W× 2

40W× 2

Illumination

≥1000Lux

Consumption

700W

850W

900W

1200W

Waterproof Sockets

Two, total load of two sockets: 500W

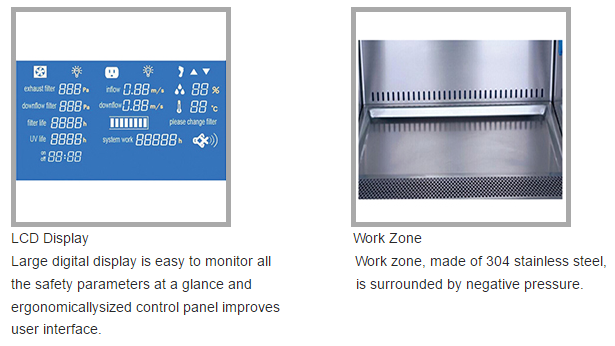

Display

LCD display: exhaust filter and downflow filter pressure, filter and UV lamp

working time, inflow and downflow velocity, filter life, humidity and temperature,

system working time etc.

Control System

Microprocessor

Airflow System

0% air re-circulation, 100% air exhaust

Visual and Audio Alarm

Filter replacement, window over height, abnormal air flow velocity.

Exhaust Duct

4 meters PVC duct, Diameter:300mm

Material

Work Zone: 304 stainless steel


Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height

750mm

Caster

Footmaster caster

Power Supply

110/220V±10%, 60/50Hz (110V/60Hz is not applicable to BSC-1800IIB2-X)

Standard Accessory

Fluorescent lamp, UV lamp*2 ,base stand, remote control, foot switch,

exhaust blower, exhaust duct, drain valve, waterproof sockets*2, pipe strap*2.

Optional Accessory

Water and gas tap

Gross Weight

246kg

276kg

302kg

408kg

Package

Main Body (W*D*H)

1220*1000

*1840mm

1460*1050

*1800mm

1650*990

*1800mm

1950*990

*1950mm


Exhaust Blower

(W*D*H)

970*810

*630mm

970*810

*630mm

970*810

*630mm

970*810

*630mm





Standard Accessory

Fluorescent Lamp              1pcs

UV lamp                         2pcs

Base Stand                      1pcs

Remote control                1pcs

Foot switch                     1pcs

Exhaust blower                1pcs

Exhaust duct                   1pcs

Drain valve                      1pcs

Waterproof sockets          2pcs

Pipe strap                       2pcs



Optional Accessory

Water and gas tap
