CLASS II A2 BIOSAFETY CABINET

Advantage
1. Motorized Front Window.
2. Time Reserve Function.
3. HEPA Filter life and UV Life indicator.
4. Automatic air speed adjustable with filter block.
5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
6. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc).
7. Most accessories are standard. No need to pay more, save your money.

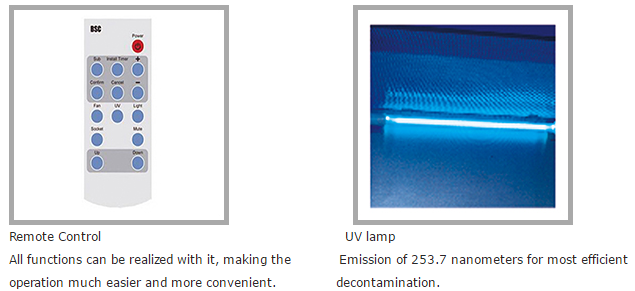

8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.

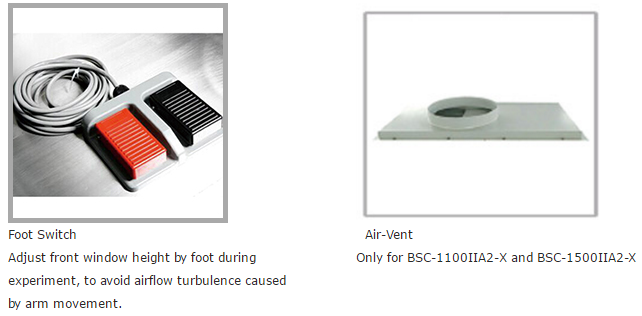

9. Foot Switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm    movement.
10. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

Advantage

1. Motorized Front Window.

2. Time Reserve Function.

3. HEPA Filter life and UV Life indicator.

4. Automatic air speed adjustable with filter block.

5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.

6. Audio and visual alarm (Filter replacement, Window over height, abnormal Air flow velocity etc).

7. Most accessories are standard. No need to pay more, save your money.

8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.

9. Foot Switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm    movement

10. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.






Specifications

Model

CN-1100IIA2-X

CN-1300IIA2-X

CN-1500IIA2-X

CN-1800IIA2-X

CN-2000IIA2-X

Internal Size

(W*D*H)

940* 600*660 mm

1150*600*660 mm

1350*600*660mm

1710*600*660 mm

1800*600*660mm

External Size

(W*D*H)

1100*750*2250mm

1300*750*2250mm

1500*750*2250mm

1870*750*2290mm

1950*800*2305mm

Tested Opening

Safety Height = 200 mm

Max Opening

420mm

420mm

400mm

400mm

400mm

Inflow Velocity

0.53±0.025 m/s

Downflow Velocity

0.33±0.025 m/s

HEPA Filter

Two, 99.999% efficient at 0.3 um. Filter life indicator.

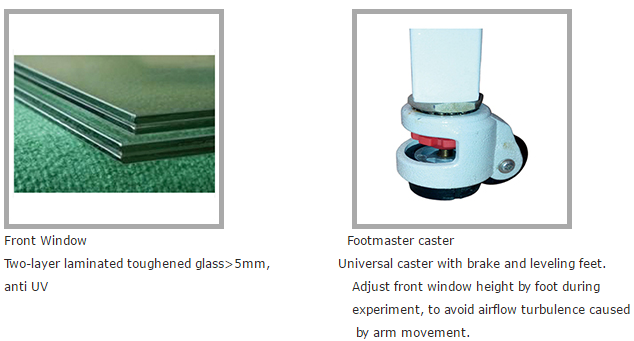

Front Window

Motorized. Two-layer laminated toughened glass ≥ 5mm. Anti UV.

Noise

EN12469 ≤ 58 dB / NSF49 ≤ 61 dB

UV Lamp

30W*1

30W* 1

40W* 1

40W*2

40W* 1

UV timer, UV life indicator, emission of 253.7 nanometers

for most efficient decontamination.

Lamp

LED Lamp

Fluorescent Lamp

12W*2

14W*2

16W*2

40W*2

40W*2

Illumination

≥1000Lux

Consumption

760W

800W

900W

900W

1500W

Waterproof Sockets

Two, total load of two sockets: 500W

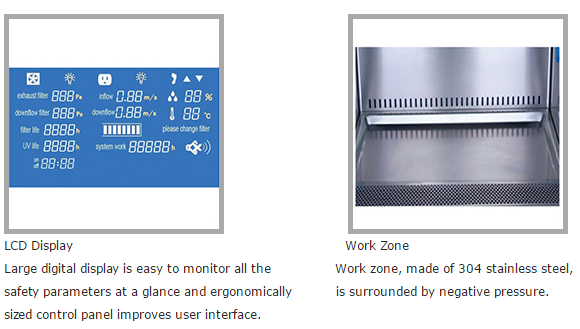

Display

LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.

Control System

Microprocessor

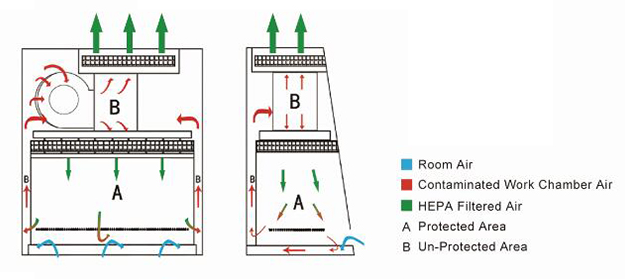

Airflow System

70% air recirculation, 30% air exhaust

Visual and audio alarm

Filter replacement, window over height, abnormal air flow velocity.

Material



Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height

750mm



Caster

Footmaster caster

Power Supply

110/220V±10%, 60/50Hz

Standard Accessory

LED lamp,UV lamp*2 ,Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2

Fluorescent lamp, UV lamp*2 ,Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2

Optional Accessory

Water and gas tap

Gross Weight

243kg

280kg

316kg

395kg

420kg

Package Size(W*D*H)

1220* 1000* 1840 mm

1460*1050*1800 mm

1630*1000*1820 mm

2000*950*1820 mm

2090*1050*1860 mm



Standard Accessory

Fluorescent lamp         1pc

UV lamp                     2pcs

Base stand                 1pc

Remote control           1pc

Foot switch                1pc

Drain valve                 1pc

Waterproof sockets     2pcs



Optional Accessory

Water and gas tap
