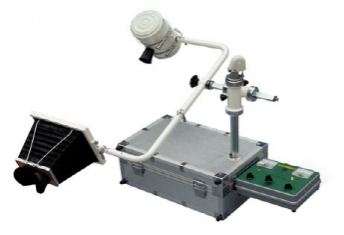

CN-4301 Portable X-ray Machine

This machine is shock-proof, ray-proof, single focus and self-rectified x-ray unit.

It applies to medical fluoroscopy and radiography on mouth, cavity bone, heart, skull as well as contraceptive ring.

Main Specifications

* Max fluoroscopy: 75KVp 3-5mA (discontinuous use)

* Max radiography: 75KVp 10ma 6sec (interval time 3minutes) (Routine fluoroscopy condition: 65KVp 3mA)

* Power Supply: 220v±10% ,50hz,１KVA

* Current: For fluoroscopy 2a (discontinuous)

 For radiography 6a (instantaneous)

* Size of screen: 203mmx 254mm

* Range of movement: vertical: 220mm; horizontal: 130mm

* Tube turning angle: Vertical360, horizontal 320

* Volume: 50cmx 31cmx 18cm

* Weight: 25kg
