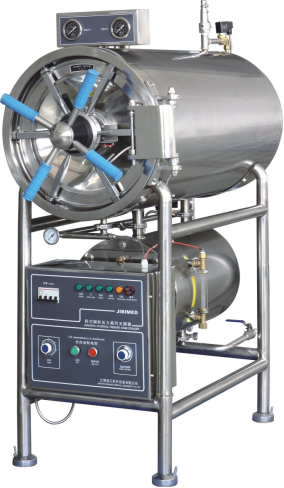

CN-9280C Horizontal Steam Sterilizer

Feature
1. Sterilizing course automatic sterilization controlled, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.
6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7. Fully stainless steel structure.

Feature

1. Sterilizing course automatic sterilization controlled, easy to operate.

2. With drying function, suitable dressing drying.

3. With over-temperature, over-pressure auto-protect device.

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.

5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting to the water tank.

6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.

7. Fully stainless steel structure.

Specification


    150L

200L

280L

Valid volume

150L(Φ440×1000) mm

200L( Φ515×1000) mm

280L(Φ600×1000) mm

Working pressure

0.22MPa

Working temperature

134

Adjustment of temperature

40-134

Time for sterilization

099min

Time for drying

099min

Heat average

≤±2

Power

9KW/AC380V.50Hz

12KW/AC380V.50Hz

Overall dimension

1400×600×1300(mm)

1400×670×1650(mm)

1400×770×1780(mm)

Transport dimension

1550×750×1850(mm)

1560×820×1850(mm)

1680×920×2100(mm)

Net/Gross Weight

240Kg/ 320Kg

260Kg/ 350Kg

365Kg/ 465Kg
