CN-2400 Auto 3 Part Differential Hematology Analyzer

FEATURE

* 23 parameters. Throughput:＞60T/H

10.4’’ TFT LCD

High accuracy technology for blood processing, only 9.6µL blood sample

Storing 40 thousand samples. Operated by mouse & keyboard

* Advanced Design   Excellent Performance

9.6µL venous blood sample, 9.6µL anticoagulant capillary blood, 20µL prediluted capillary blood. One time blood sampling could make two tests under prediluted mode.

Intelligent float discriminator. Manual adjust supported

Dual swirling flow and intelligent fitting technology to ensure reliable PLT counting

Module design, separate hydraulic part & circuit, enhanced anti-interference function

Automatic washing of inside and outside surface of probe

Alarm hint if reagent volume is short

* Simple Operation    Low Cost

Automatic dispense, Automatic making dilution inside of instrument, Automatic testing, Automatic cleaning

Windows color operation interface and operated by mouse & keyboard

Adjustable probe. Many kinds of blood sampling container

Automatic sleep and wake up function

Low reagent consumption and low cost

* Convenient Maintenance   Safety & Eco-protection

Automatic & Intelligent function of diagnosis and maintenance

Soak, back & forth flush, real time monitoring function of high pressure burning and

automatic block-clearing

Perfect self checking function, Automatic cleaning tubes during power on and power off for reducing the rate of blockage

Fan Shape door for easy maintenance

Eco-friendly design of built-in reagents, saving space & reducing the rate of reagent

contamination

No cyanogen reagents for Eco-protection

* Perfect Quality     Traceable Results

Manual and automatic calibration available

Boasts management system for quality control, nine kinds of control files. Mean value, SD value, CV value are provided. Automatic drawing L-J graph

Provide relevant blood control and calibrator

Furnished with original reagents

ISO9001, CMD, CMC and CE approved

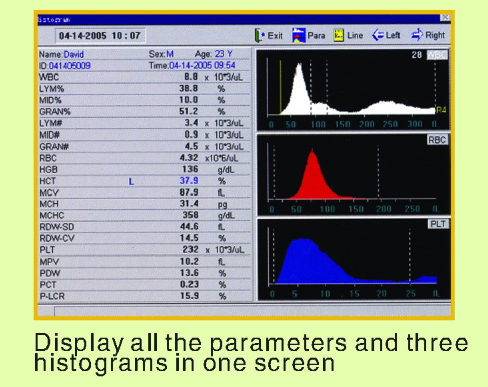

* Display all the parameters and three histograms in one screen.

* Several groups of reference values setting

* Automatic storing 40 thousand samples. Combined search mode as per many conditions

* Venous blood 9.6µL, anticoagulant capillary blood 9.6µL, prediluted capillary blood 20µL,convenient and reliable blood sampling

* Eco-protection designed built-in reagent system, saving space and decrease the rate of contamination

TECHNICAL PARAMTERS

* Function: Automated WBC 3-differential, 23 parameters with 3 histograms(WBC, RBC, PLT)

* Principal: Electronic impedance, SFT method for hemoglobin

* Testing Channel: Two channels testing, WBC/HHGB channel and RBC/PLT channel

* Parameters: WBC, LYM#, MID#, GRAN#,LYM%,MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, PCT, RDW-CV, RDW-SD, MPV, PDW, P-LCR and WBC, RBC, PLT three histograms

* Throughput: ＞60T/H, 24 hours switch on, automatic sleep and wake up function

* Sampling Mode: Optional venous blood, anticoagulant blood and prediluted blood

* Sample Volume: Whole blood ≤9.6µL, capillary blood ≤9.6µL, prediluted capillary blood ≤20µL, the sample volume for repeating two times testing and avoiding second sampling

* Working Mode: Automatic sampling, detecting automatic testing, furnished with dilutor, no need diluting outside. Automatic dispensing lyse and making second diluting automatically

* Block-clearing: Soak and washing back and forth. Real time monitoring function of high pressure burning and automatic block-clearing. Boast the function of monitoring incomplete blockage

* Alarm: Automated system diagnosis, self testing, fault alarm & reagent shortage alarm

* Automated Maintenance: Automated washing during power on and power off, reducing the blockage rate

* Storage: Adopting 2G SD card memory. Automatic storing 40 thousand samples with all parameters and 3 histograms. Combined search mode as per many conditions

* Control Mode: Boasts management system for quality control, nine kinds of control files. Mean value, SD value, CV value are provided. Automatic drawing L-J graph. Provide matched blood control

* Calibration Mode: Automatic calibration and manual calibration

* Reference Value Setting: Man, Woman, Children, Baby and General etc.

* Performance:        Repeatability Error       Linearity Range

WBC                 ＜2.0%              0.0～99.9×10⁹/L

RBC                 ＜1.5%               0.00～9.99×10¹²/L

HGB                 ＜1.5%                0～300g/L

MCV                 ＜0.4%                40～150fL

HCT                 ＜1.0%                0.0～100.0%

PLT                  ＜4.0%              0.0～999×10⁹/L

* Carry Over: RBC, WBC, HGB＜0.5%, PLT＜1.0%

* Operating Interface: Colorful Windows interface, no need connecting computer. Operating by graphic button with mouse and keyboard

* Display: Big size 10.4’’ TFT LCD, all parameters and histograms displayed in the same screen

* Print Mode: Internal high-speed thermal printer. Optional connection with specified external printer. English printouts

* Reagents System: Open reagent system. No cyanogen reagents. Provide original reagents.

* Connection Port: USB, RS-232, network interface

REAGENT

Ordinary Package of AJ-2400 (Suggest to send by AIR)

One Set including below:

Big Package of AJ-2400 (Suggest to send by SEA)

One Set including below:
